Coolant Recovery Container: Removal

1. Disconnect the hose from radiator filler neck.
2. Remove coolant recovery bottle. See Fig 1.

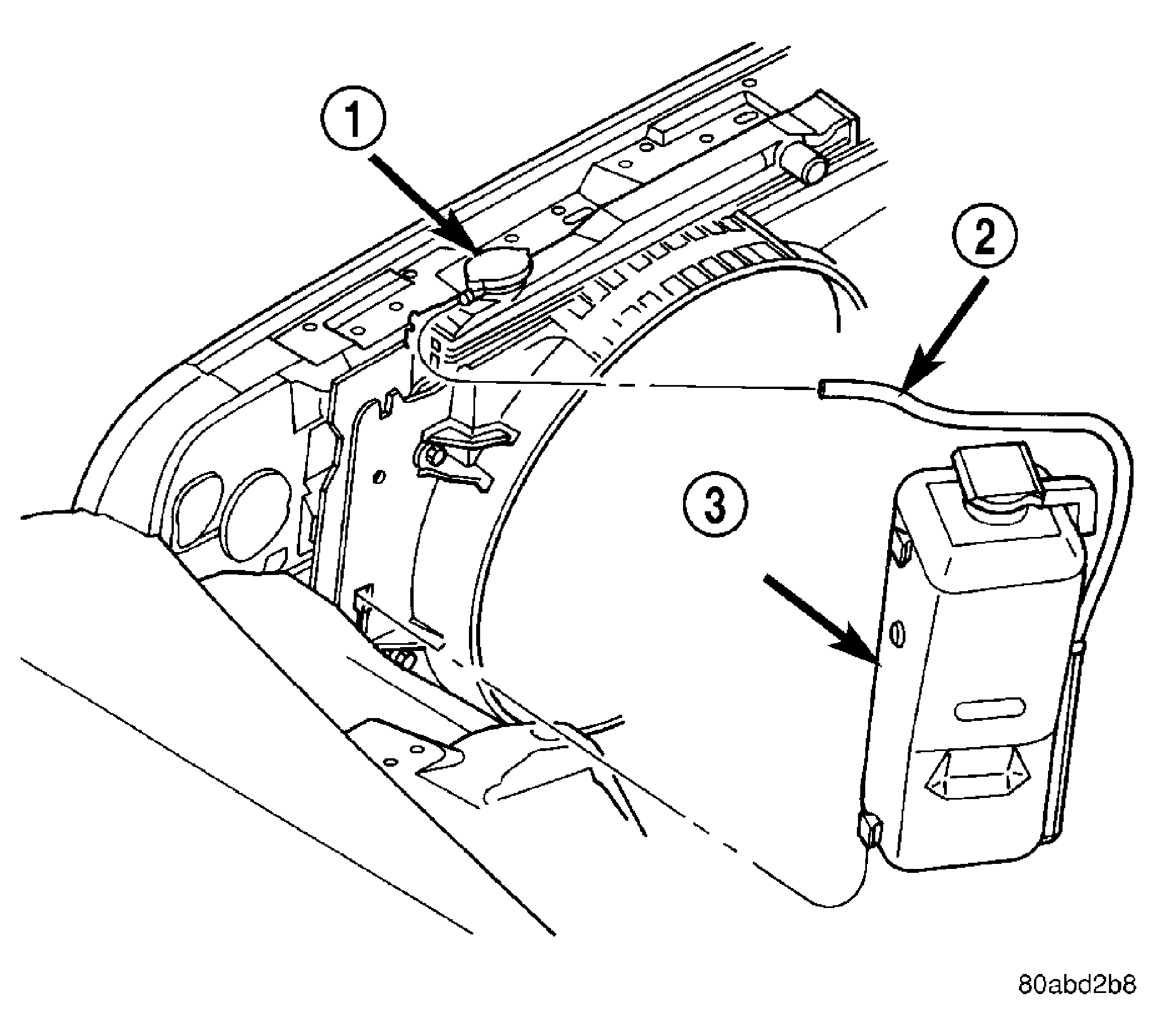

Fig 1: Coolant Reserve/Overflow Bottle

Courtesy of DAIMLERCHRYSLER CORP.

1 - RADIATOR PRESSURE CAP

2 - HOSE

3 - COOLANT RECOVERY BOTTLE
