Suspension System: Front: Bushings: Installation
- Place Receiver 7932-1 on the other side of the axle bracket.

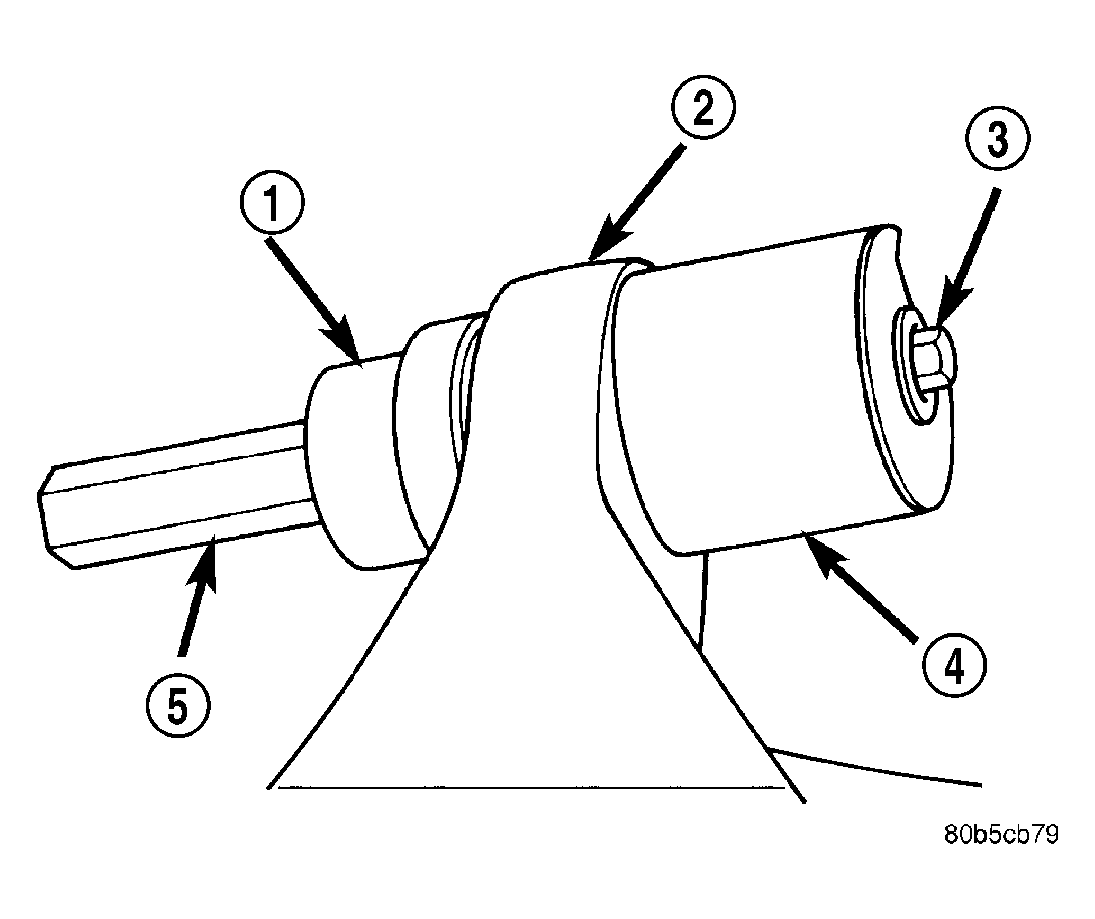

- Position new bushing up to the axle bracket, and large end of Remover/Install 7932-2 against the bushing. See Fig 1.
- Install bolt 7604 through receiver, bushing and installer.
- Install Long Nut 7603 and tighten nut to draw the bushing into the axle bracket.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - REMOVER/INSTALLER |
| 2 - AXLE BRACKET |
| 3 - BOLT |
| 4 - RECEIVER |
| 5 - LONG NUT |
- Remove tools and install the upper suspension arm.
