Suspension System: Front: Shock: Removal

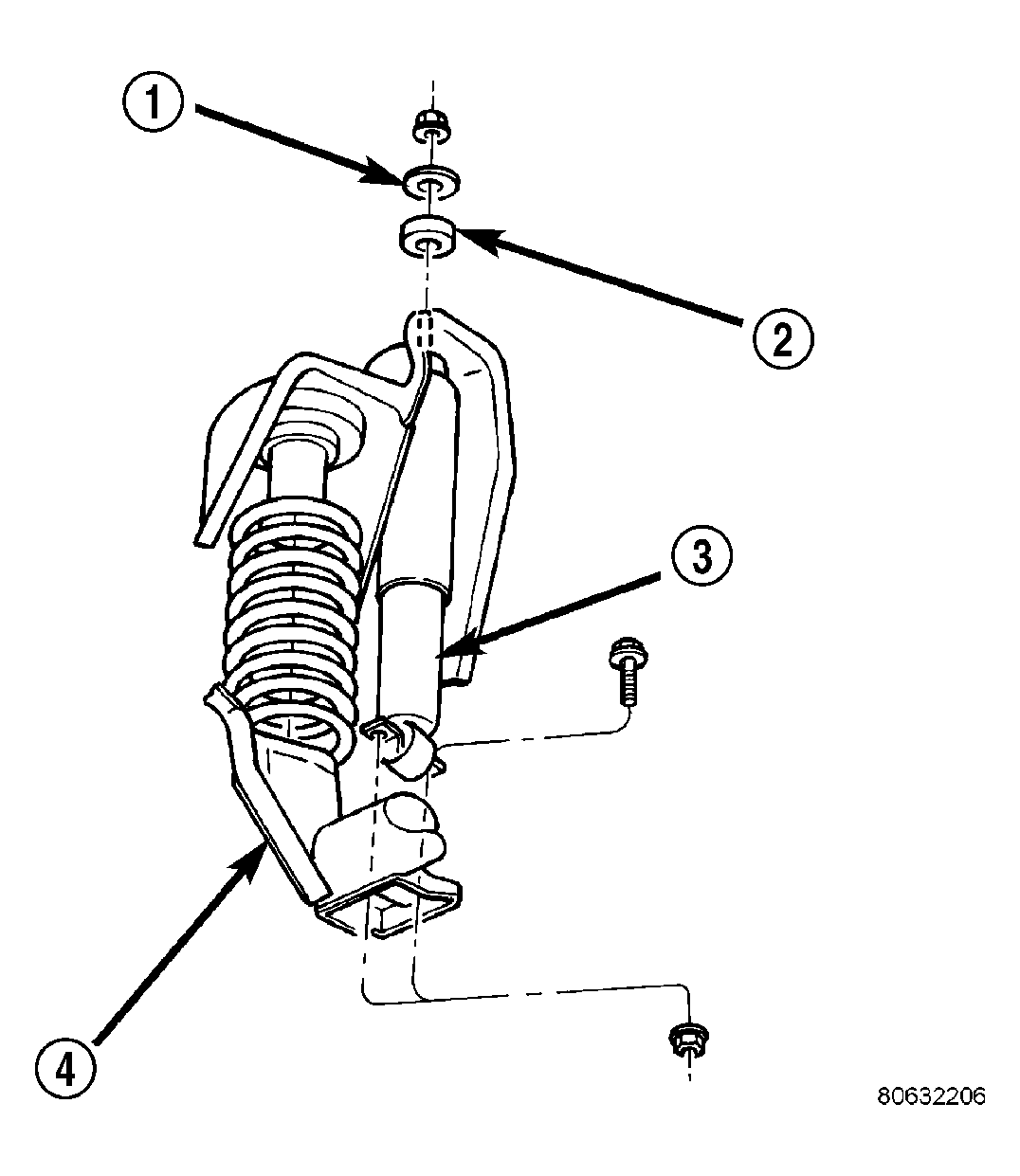

- Remove the nut, retainer and grommet from the upper stud through engine compartment access hole. See Fig 1.
1 - RETAINER 2 - GROMMET 3 - SHOCK 4 - FRONT AXLE - Remove the lower nuts and bolts from the axle bracket and remove the shock absorber.
