Lower Control Arm: Removal

Raise and support the vehicle.
Remove the lower suspension arm nut and bolt at the axle bracket. See Fig 1.
Remove the nut and bolt at the frame rail mount and remove the lower suspension arm. See Fig 2.

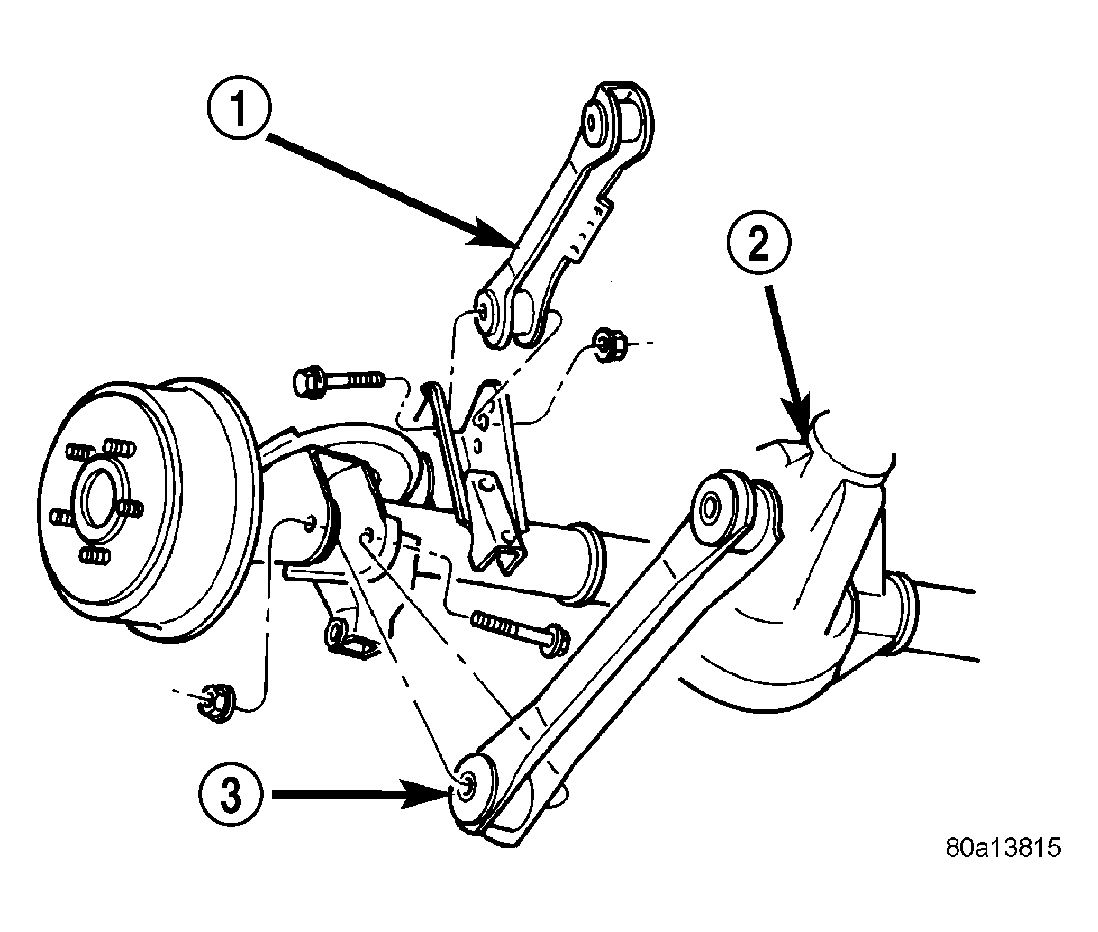

Fig 1: Upper & Lower Suspension Arms

Courtesy of DAIMLERCHRYSLER CORP.

1 - UPPER SUSPENSION ARM

2 - REAR AXLE

3 - LOWER SUSPENSION ARM

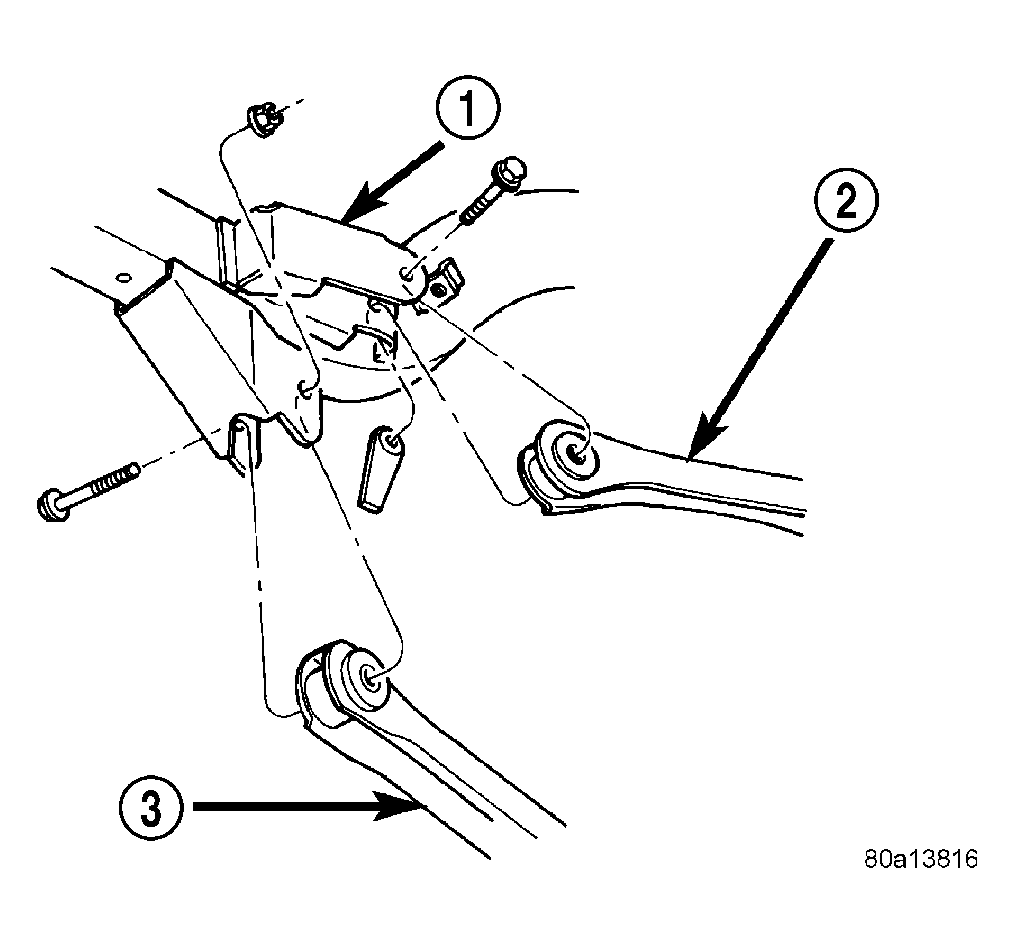

Fig 2: Upper & Lower Suspension Arms

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRAME MOUNT

2 - UPPER SUSPENSION ARM

3 - LOWER SUSPENSION ARM
