Cradle-Rear Body

Remove the rear fascia. See REMOVAL .
Remove the spare wheel.
Remove the tail lamps.

Fig 1: Tire Pressure Monitor Sensor
Courtesy of CHRYSLER LLC
Disconnect the tire pressure monitor sensor, if equipped.

Fig 2: Right Harness
Courtesy of CHRYSLER LLC
Separate the right harness hangers and position the harness through the cradle.

Fig 3: Identifying Vapor Canister Electrical Connector
Courtesy of CHRYSLER LLC
Disconnect the vapor canister electrical connector.

Fig 4: Canister Hoses
Courtesy of CHRYSLER LLC
Disconnect the vapor canister hoses.

Fig 5: Vapor Canister
Courtesy of CHRYSLER LLC
Loosen the upper two canister nuts.
Remove the lower canister nut (2) and remove the vapor canister (1).

Fig 6: Left Harness
Courtesy of CHRYSLER LLC
Separate the left harness hangers and position the harness through the cradle.

Fig 7: Trailer Wiring
Courtesy of CHRYSLER LLC
Disconnect trailer wiring electrical connector (1).

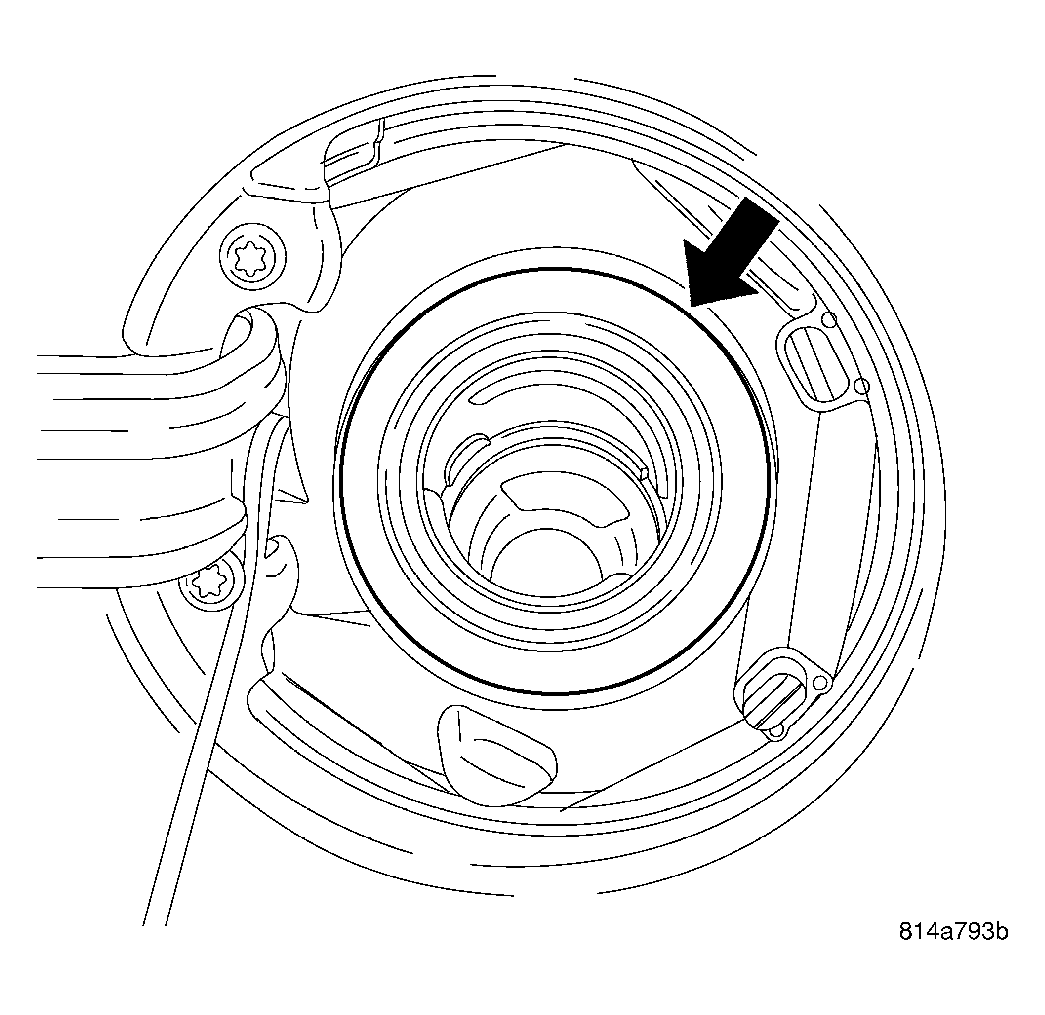

Fig 8: Filler Neck Grommet 1
Courtesy of CHRYSLER LLC
Lube filler neck grommet to aid with removal of the filler neck.

Fig 9: Fuel Filler Hoses & Components
Courtesy of CHRYSLER LLC
Disconnect vapor canister line (2).
Disconnect the fuel line (1).
Loosen the clamp (4) and disconnect the fuel filler hose (3).

Fig 10: Fuel Filler Tube & Fastener
Courtesy of CHRYSLER LLC
Remove the bolt (1) supporting the fuel filler tube (2).

Fig 11: Fuel Filler Neck
Courtesy of CHRYSLER LLC
Separate and remove the fuel filler neck.

Fig 12: Sway Bar Attachments
Courtesy of CHRYSLER LLC
Remove the outer bolt (2 and 3) and disconnect the track bar (1).

Fig 13: Exhaust Hangers
Courtesy of CHRYSLER LLC
Separate the exhaust hangers (1 and 2) and support the exhaust.

Fig 14: Cradle
Courtesy of CHRYSLER LLC
Using a grease pencil or equivalent, mark the location of the body cradle (3) on the underbody to aid installation.
Support the cradle (3) with a suitable lifting device.
Remove the upper cradle bolts (2).
Remove the side cradle bolt (1).
Remove the rail bolts (4) and remove the cradle (3).
