Parking Brake Switch Connector End View

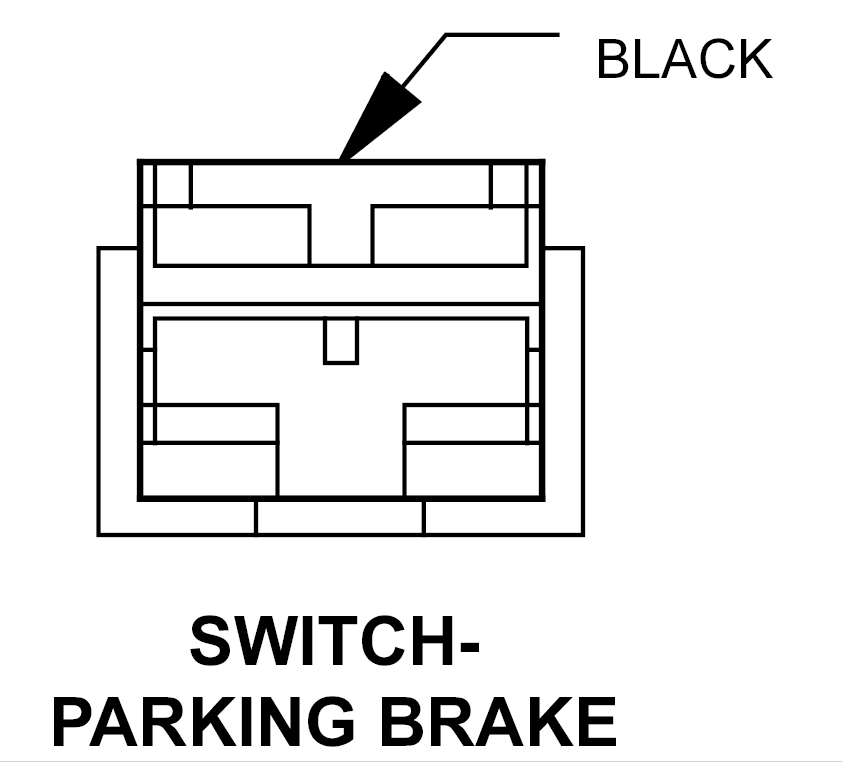

SWITCH-PARKING BRAKE - BLACK 1-WAY

GXK780422Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 B25 20DG/WT PARK BRAKE SWITCH SENSE
