U0121-Lost Communication With Anti-Lock Brake Module
›
Circuit Schematic
Circuit Schematic

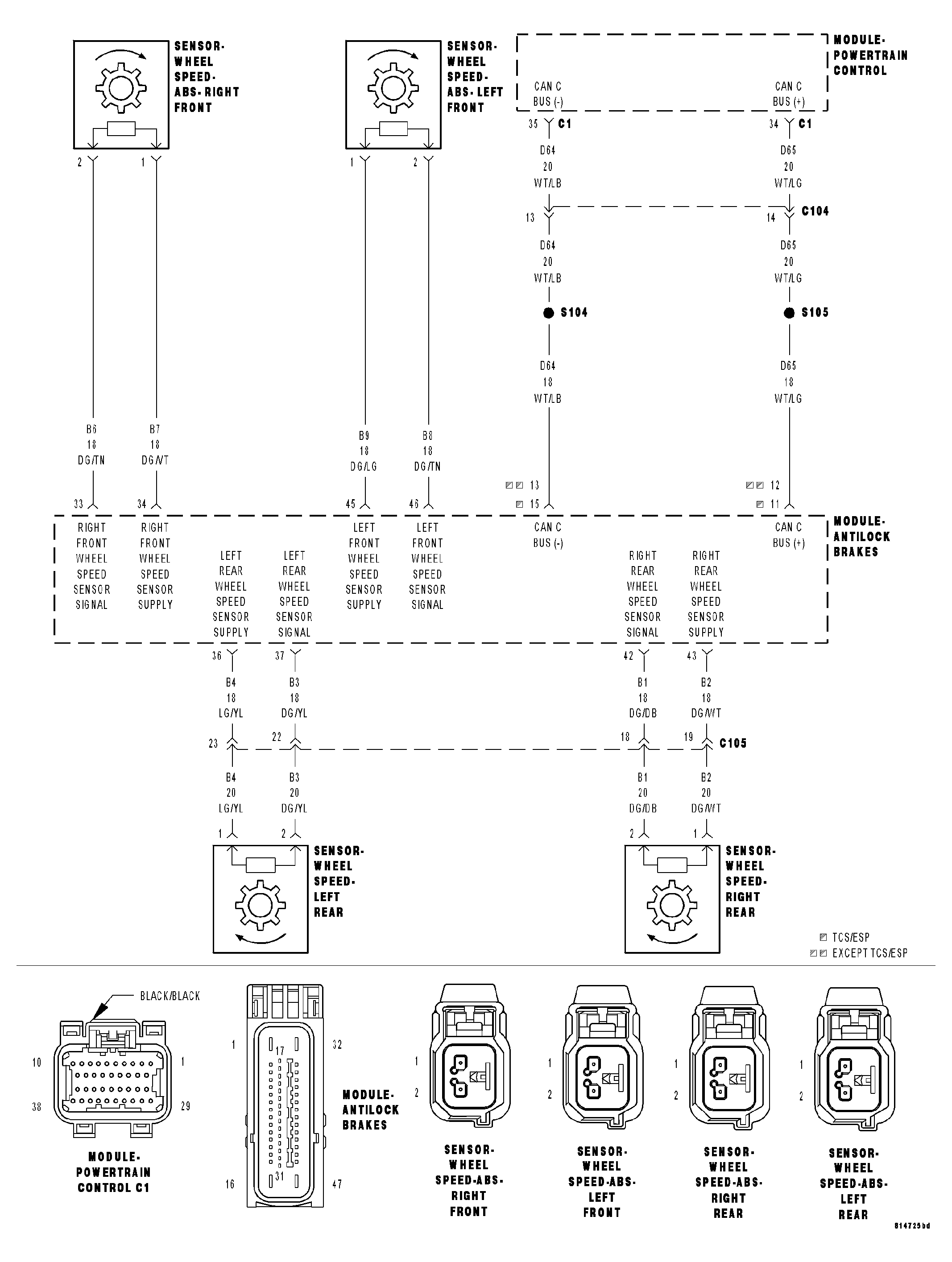

Fig 1: Antilock Brake System Circuit Schematic
Courtesy of CHRYSLER LLC
