Frame & Bumpers: Bumpers: Fascia-Rear: Installation: Fascia-Rear

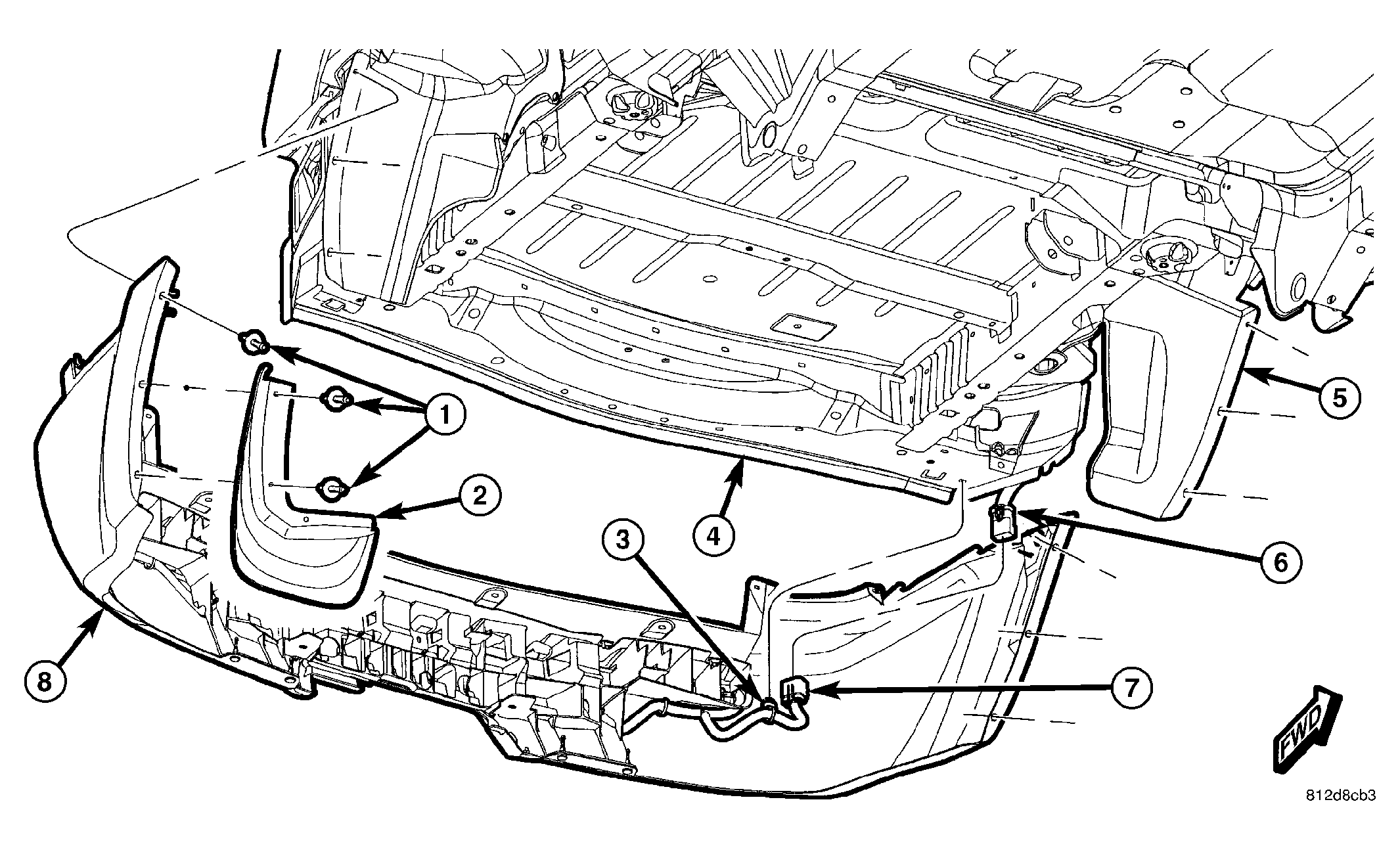

Fig 1: Rear Fascia To Wheel Liners & Fasteners

Courtesy of CHRYSLER LLC

1. Install the park assist sensors, if equipped.
2. Install the energy absorber and install the four push pin fasteners.
3. Position the fascia onto the vehicle and connect the electrical connector.
   Fig 2: Identifying Lower Rear Fascia & Fasteners

   Courtesy of CHRYSLER LLC

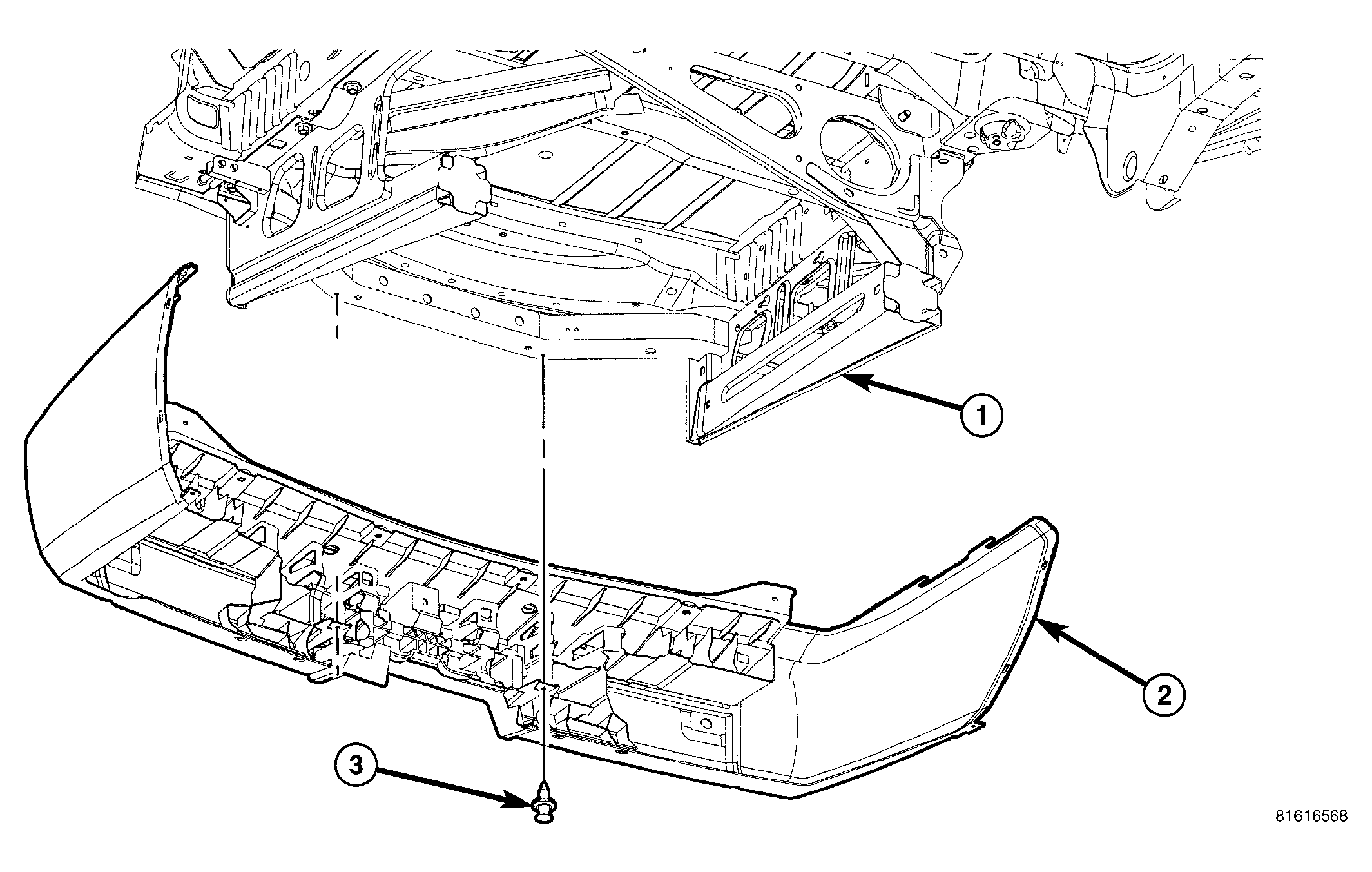

4. Install the two push pin fasteners (3).
   Fig 3: Rear Fascia & Fasteners

   Courtesy of CHRYSLER LLC
5. Slightly spread the sides of the fascia to clear the painted surfaces.
6. Direct the slots in the upper sides of the fascia onto the two t-pushpins (4) on either side.

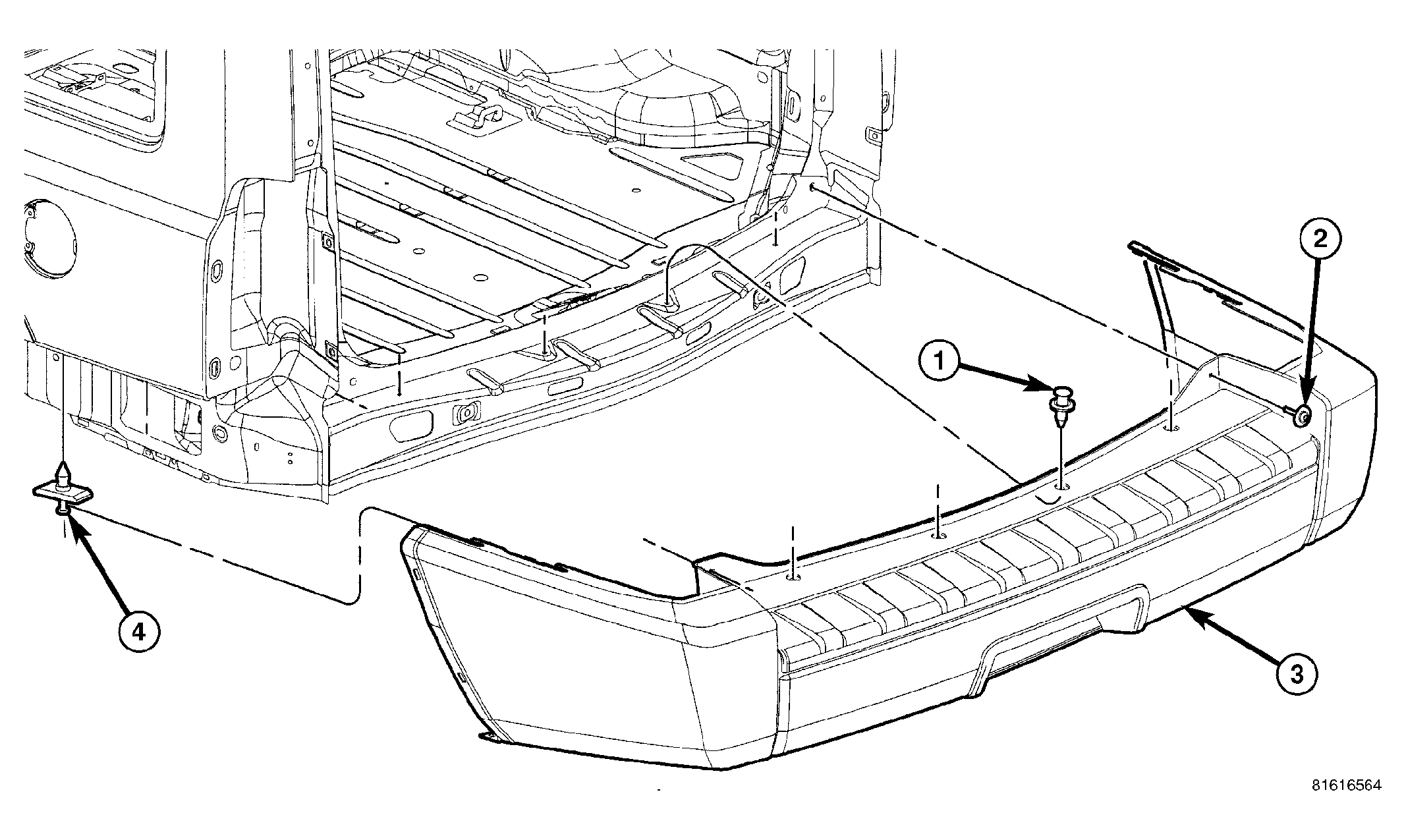

7. Install the two screws (2) and four push pin fasteners (1).
   Fig 4: Identifying Lower Rear Fascia & Fasteners

   Courtesy of CHRYSLER LLC
8. Install the two lower push pin fasteners (3).
   Fig 5: Fascia To Quarter Panel

   Courtesy of CHRYSLER LLC
9. Install the nuts (1) and tighten to 9 N.m (80 in. lbs.).
   Fig 6: Rear Fascia To Wheel Liners & Fasteners

   Courtesy of CHRYSLER LLC
10. Install new rivets (1) attaching the wheelhouse splash shields (4) to the fascia.
