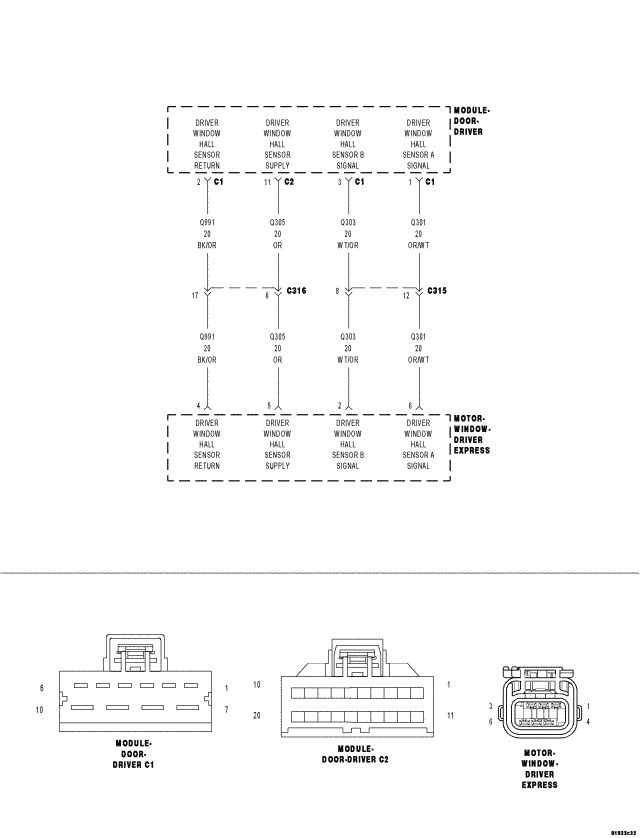

Home › Jeep › 2007 › Commander Base, 4.7 N, AWD › Repair and Diagnosis › Body & Frame › Windows › Power Windows - Electrical Diagnostics › Power Windows - Electrical Diagnostics › DTC Troubleshooting › B185A-Driver Window Position Sensor Circuit Performance - DDM › Circuit Schematic
