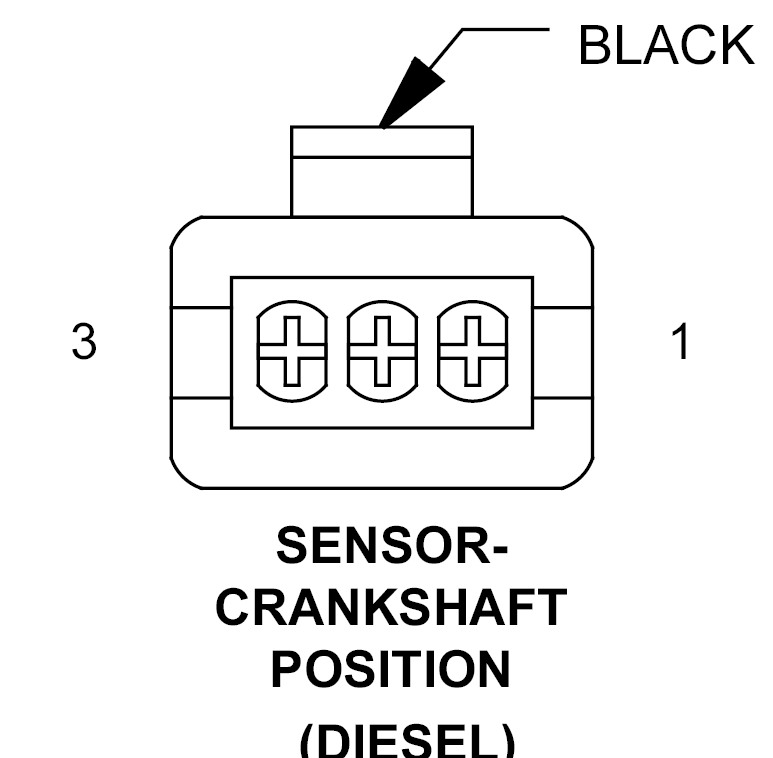

Crankshaft Position Sensor (Diesel) Connector End View
SENSOR-CRANKSHAFT POSITION - BLACK 3-WAY(DIESEL)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z753 16BR/BK |
CRANKSHAFT POSITION SENSOR SIGNAL NO. 2 |
| 2 |
K24 16DG/WT |
CRANKSHAFT POSITION SENSOR SIGNAL NO. 1 |
| 3 |
K853 16RD/VT |
CKP 5 VOLT SUPPLY |
