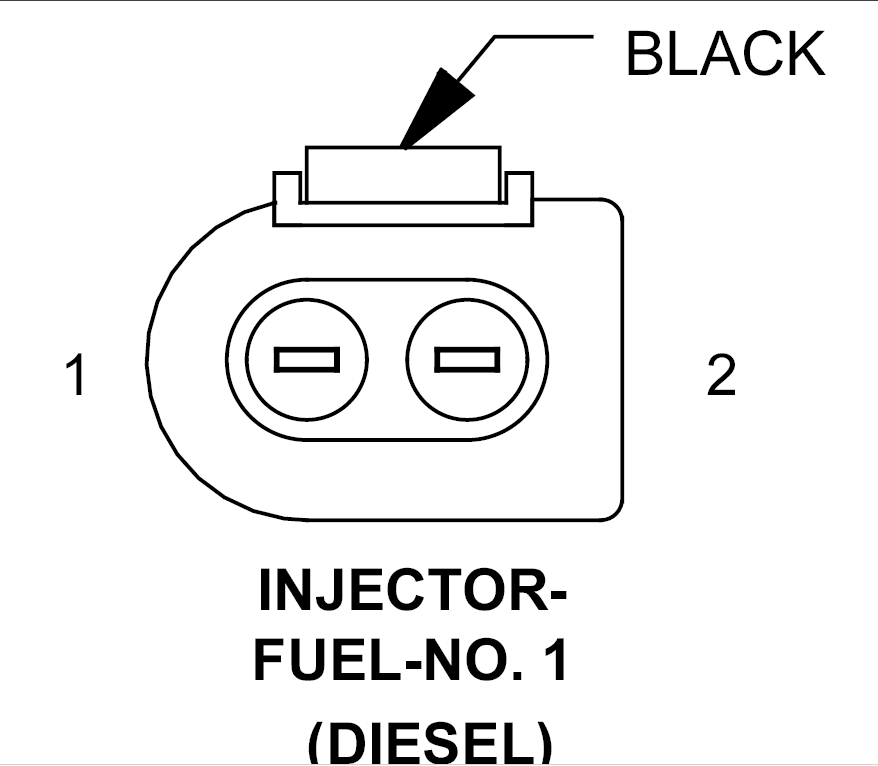

Fuel Injector 1 (Diesel) Connector End View

INJECTOR-FUEL-NO. 1 - 2-WAY(DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K611 16BK/BL	FUEL INJECTOR NO. 1 LOW-SIDE CONTROL
2	K11 16BL	FUEL INJECTOR NO. 1 HIGH-SIDE CONTROL
