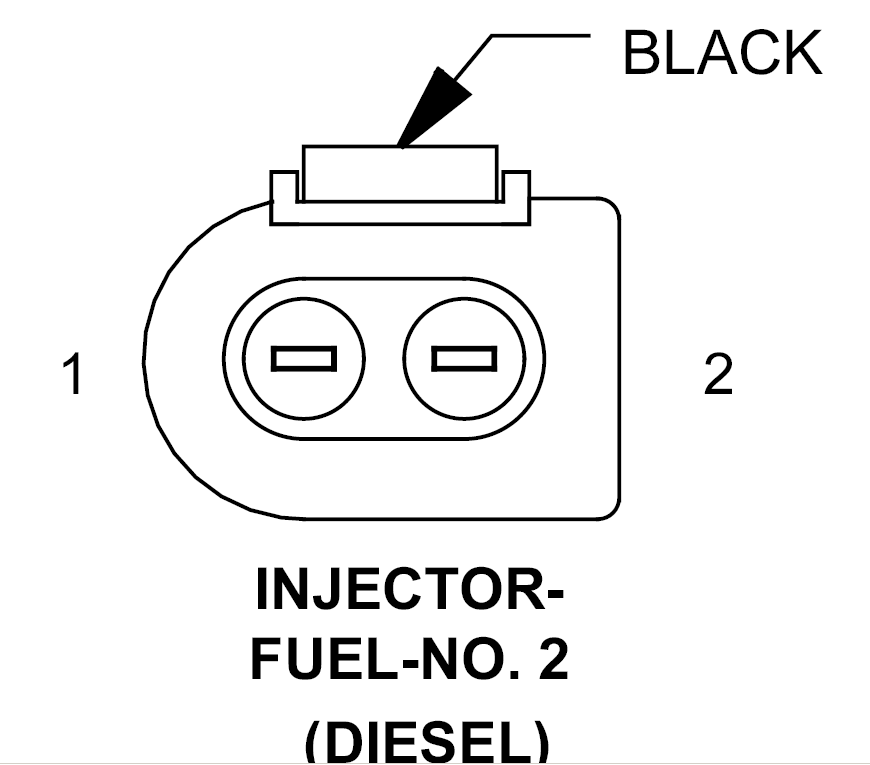

Fuel Injector 2 (Diesel) Connector End View

INJECTOR-FUEL-NO. 2 - 2-WAY(DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K612 16BK/VT	FUEL INJECTOR NO. 2 LOW-SIDE CONTROL
2	K12 16BL/VT	FUEL INJECTOR NO. 2 HIGH-SIDE CONTROL
