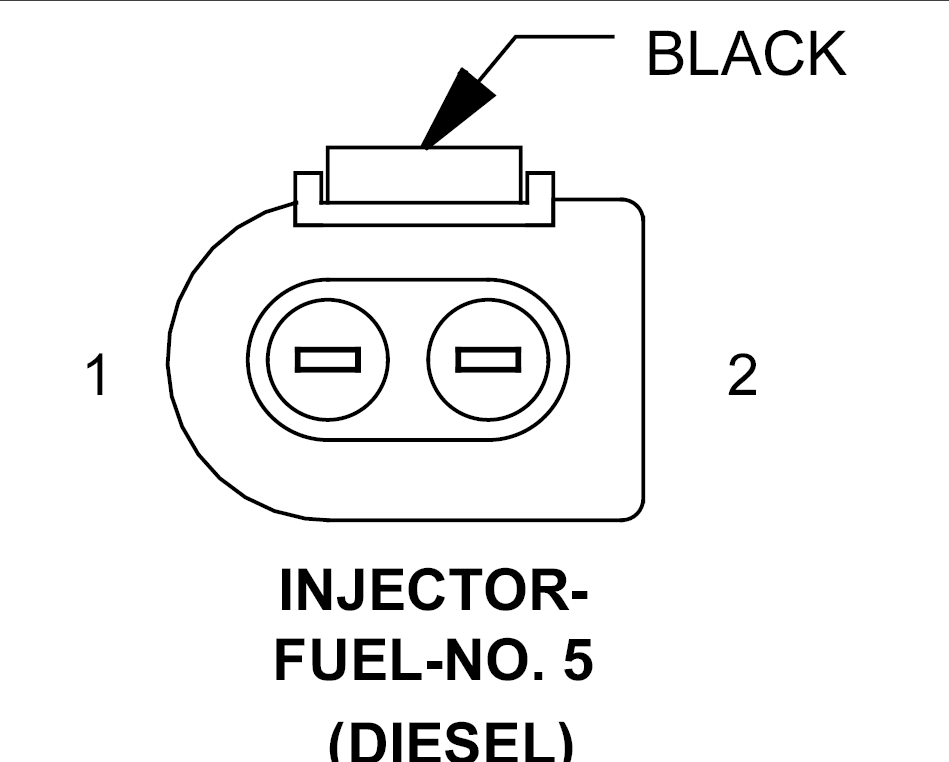

Fuel Injector 5 (Diesel) Connector End View

INJECTOR-FUEL-NO. 5 - 2-WAY(DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K638 16BK/DG	FUEL INJECTOR NO. 5 LOW-SIDE CONTROL
2	K38 16BL/DG	FUEL INJECTOR NO. 5 HIGH-SIDE CONTROL
