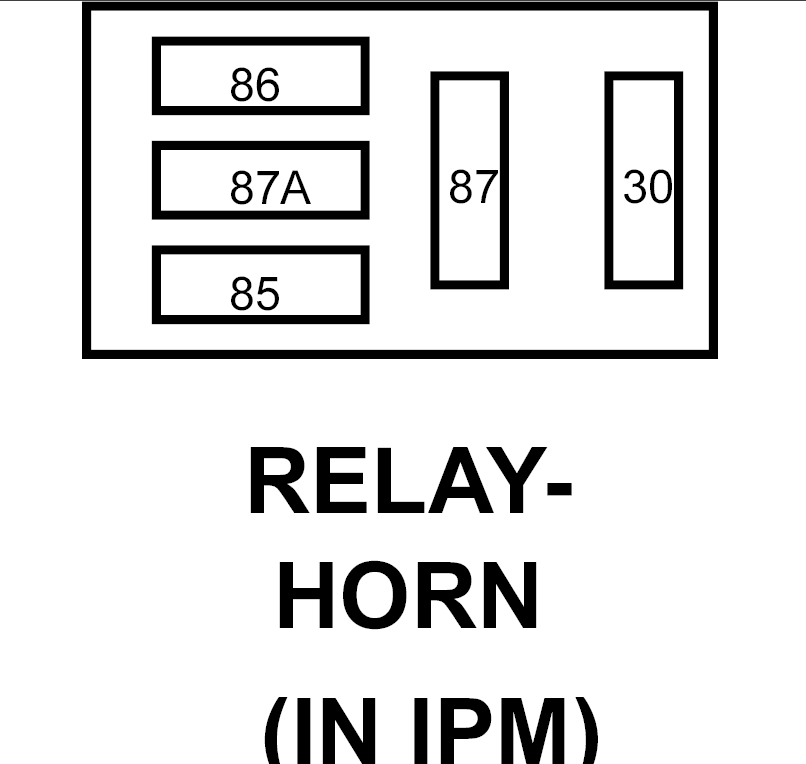

Horn Relay Connector End View

RELAY-HORN - 0-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	INTERNAL	FUSED B(+)
85	INTERNAL	HORN RELAY CONTROL
86	INTERNAL	FUSED B(+)
87	X2 18DG/OR	HORN RELAY OUTPUT
87A	-	-
