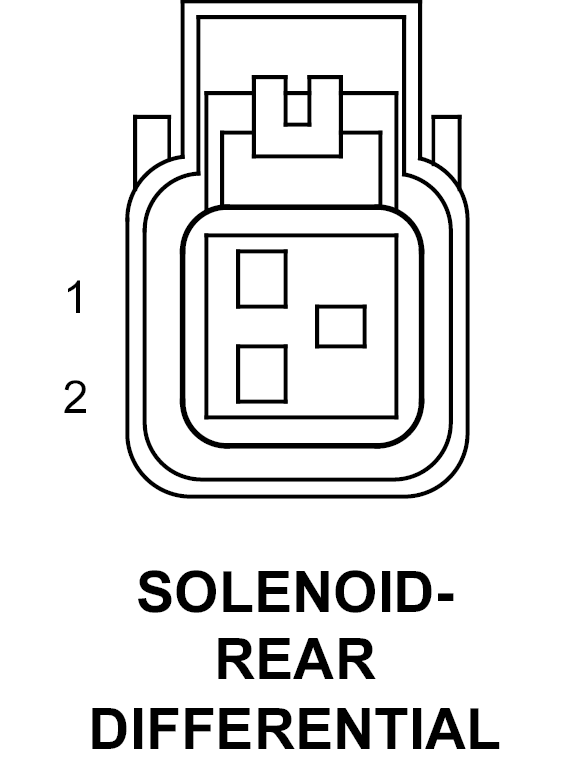

Rear Differential Solenoid Connector End View

SOLENOID-REAR DIFFERENTIAL - 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	T301 18DG/YL	SWITCHED BATTERY SOLENOID SUPPLY
2	T312 18YL/VT	REAR DIFFERENTIAL SOLENOID CONTROL
