Driver Squib Airbag 1 Connector End View
Driver Squib Airbag 1 Connector End View

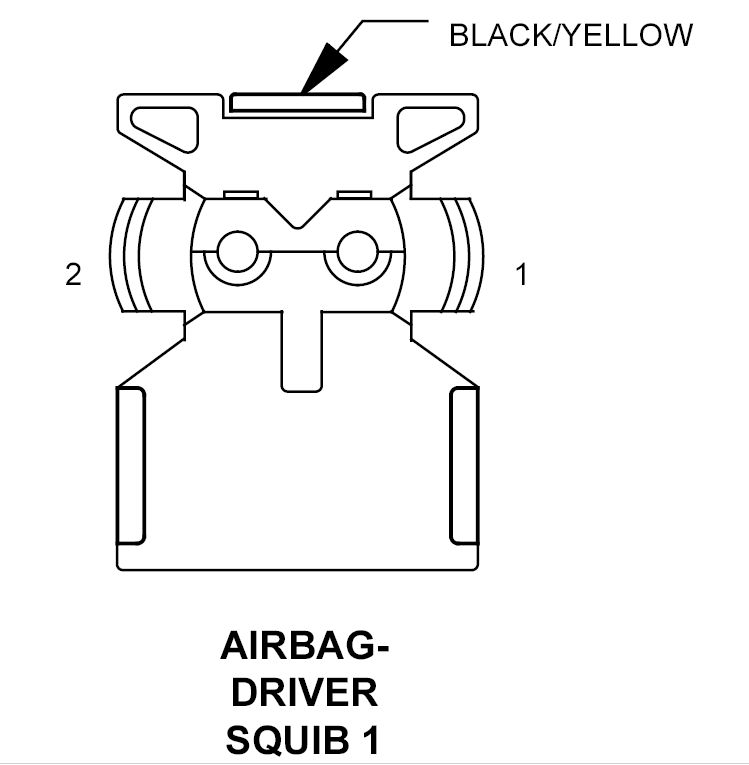

AIRBAG-DRIVER SQUIB 1 - BLACK/YELLOW 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R345 20LG/OR
DRIVER SQUIB 1 LINE 1
2
R343 20LG/BR
DRIVER SQUIB 1 LINE 2
