U110E-Lost Ambient Temperature Message
›
Circuit Schematic
Circuit Schematic

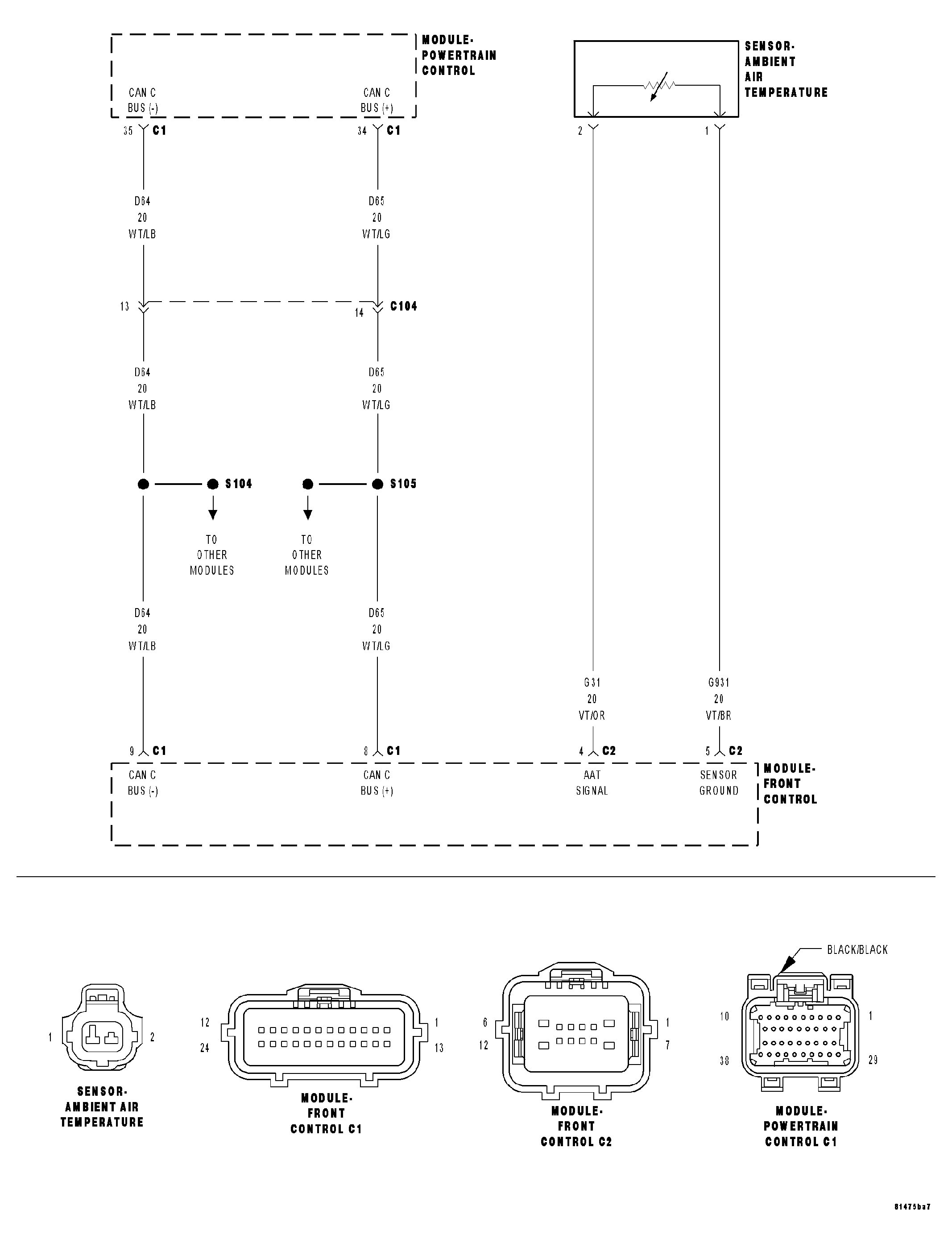

Fig 1: Ambient Air Temperature Sensor Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
