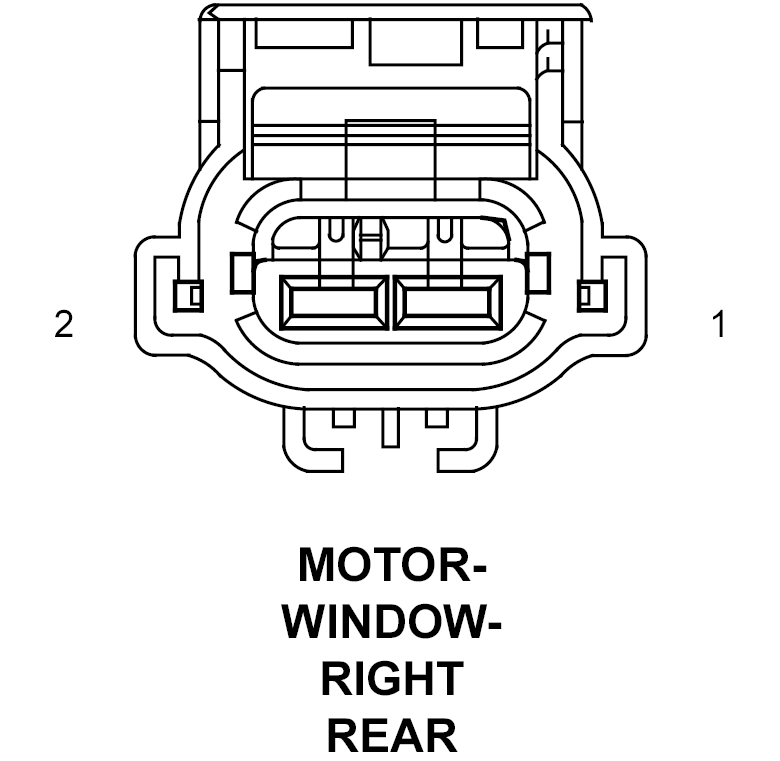

Right Rear Window Motor Connector End View

MOTOR-WINDOW-RIGHT REAR - 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q112 16OR/BR	RIGHT REAR WINDOW DRIVER (UP)
2	Q212 16OR/VT	RIGHT REAR WINDOW DRIVER (DOWN)
