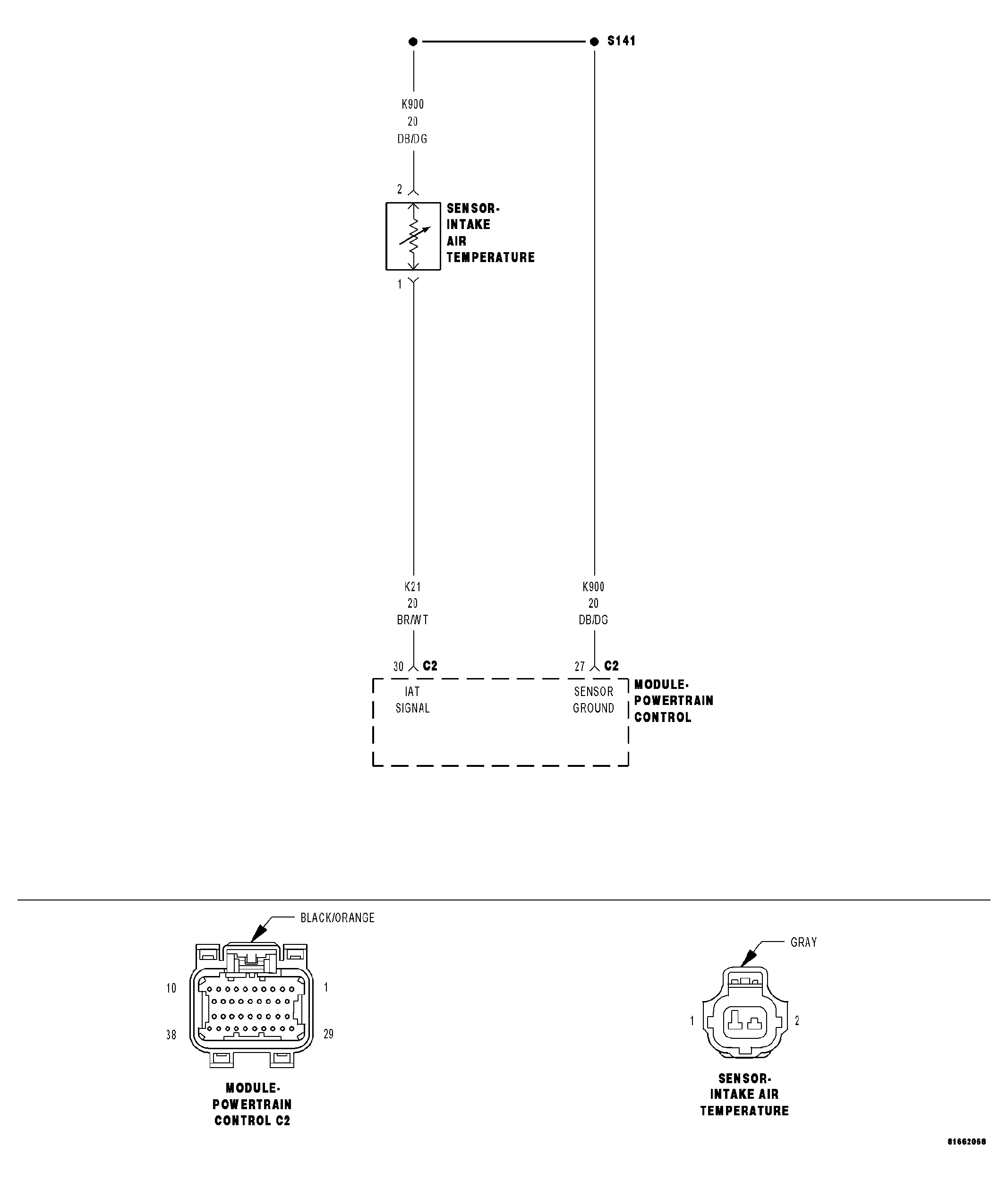

Home › Jeep › 2007 › Commander Base, 4.7 P, AWD › Repair and Diagnosis › Engine Performance › System › DTCS P0016 To P0122, Pre-Diagnostic Troubleshooting Procedure, Intermittent Condition › P0113-Intake Air Temperature Sensor Circuit High › Circuit Schematic
