DTCS P0175 To P0315
›
P0302-Cylinder 2 Misfire
›
Circuit Schematic
Circuit Schematic

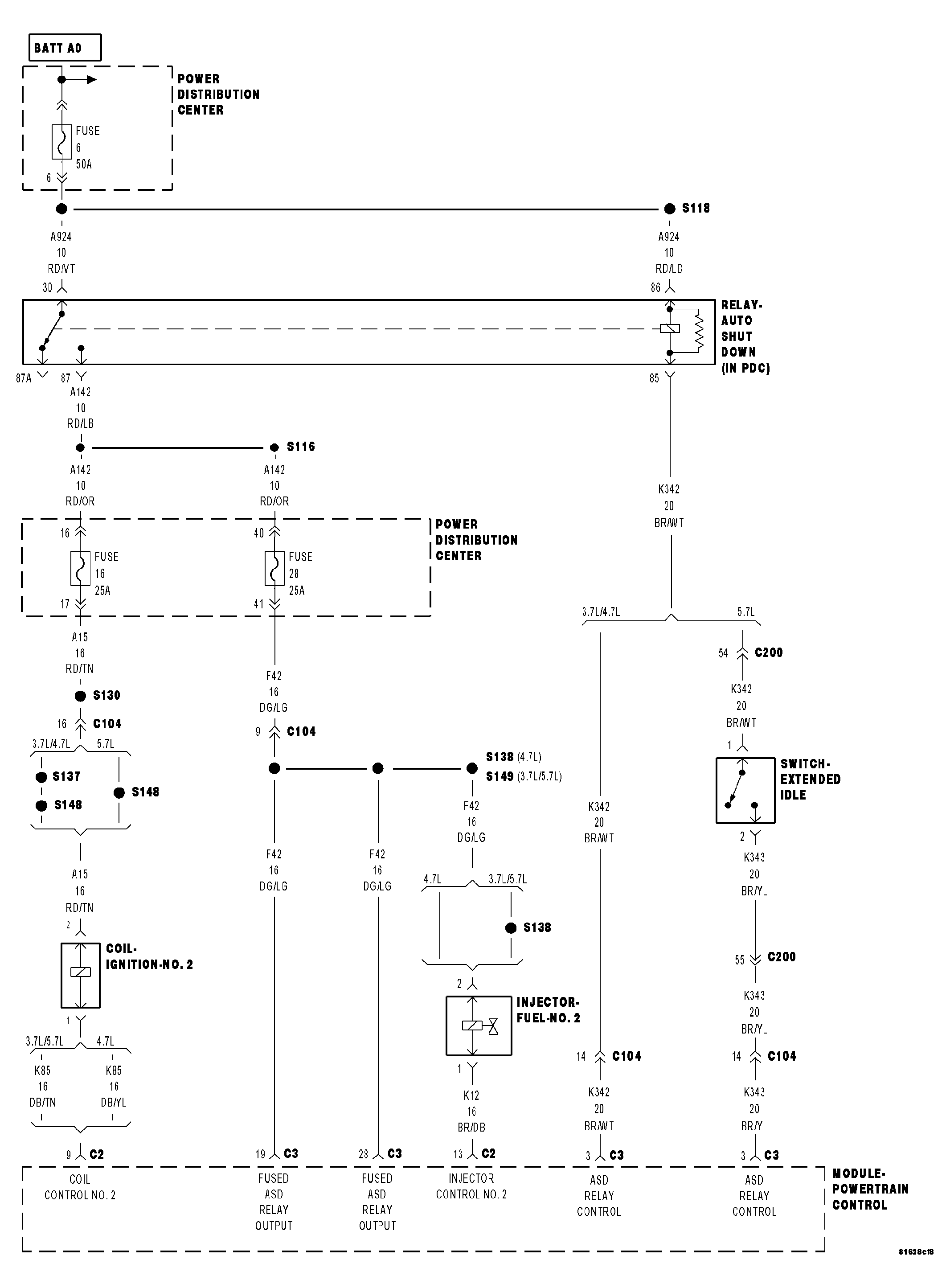

Fig 1: Cylinder 2 Injector & Coil Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
