Flex Plate

WARNING: This page is about a different variant/trim than selected.

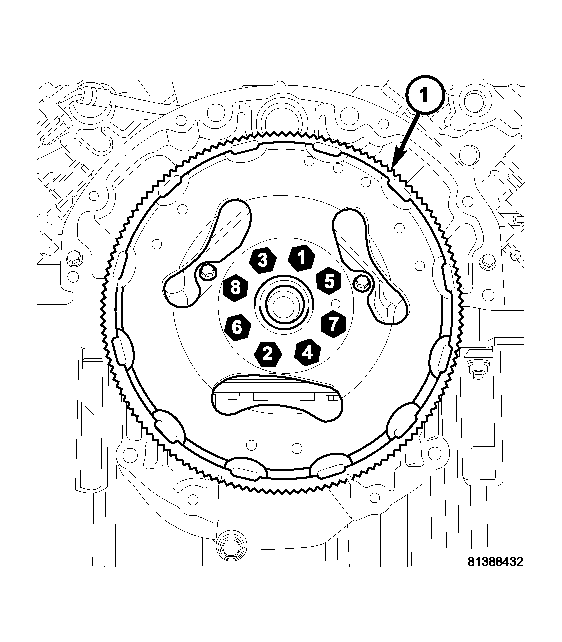

Fig 1: Flex Plate Bolt Tightening Sequence
GC0003986Courtesy of CHRYSLER LLC
1 - Flexplate
  1. Remove the transmission.
  2. Remove the bolts and flexplate (1).
