Rear Engine Mount: 4X2

WARNING: This page is about a different variant/trim than selected.

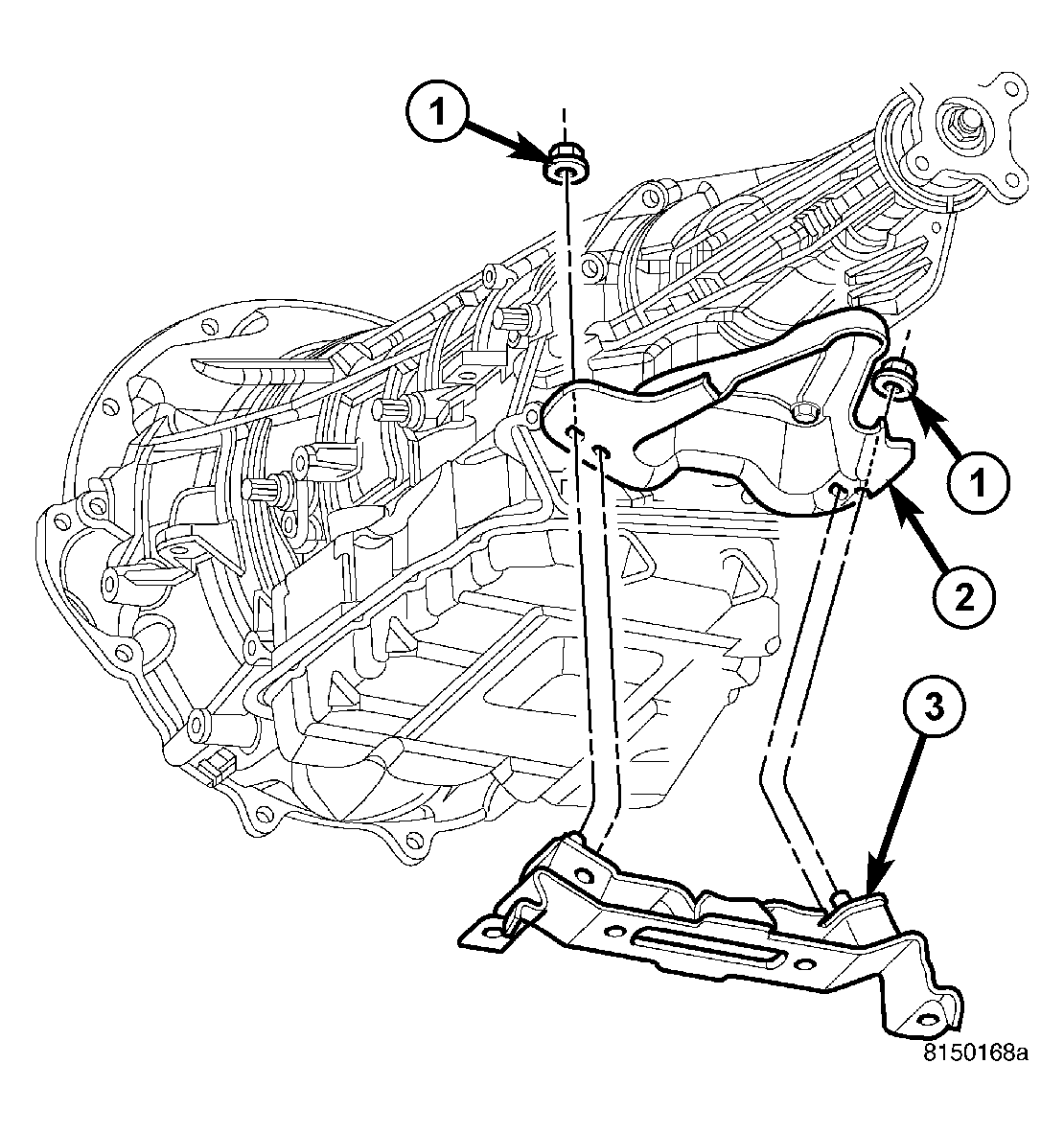

Fig 1: Removing/Installing Engine Rear Mount (4X2)
GC0027233Courtesy of CHRYSLER LLC
  1. Raise the vehicle on a hoist.
  2. Using a suitable jack, support transmission.
  3. Remove the crossmember.
  4. Remove the fasteners (1) from the transmission mount to transmission.
  5. Remove the mount (3).
  6. Remove the transmission mount bracket (2), if required.
