Rear Engine Mount: 4X4

WARNING: This page is about a different variant/trim than selected.

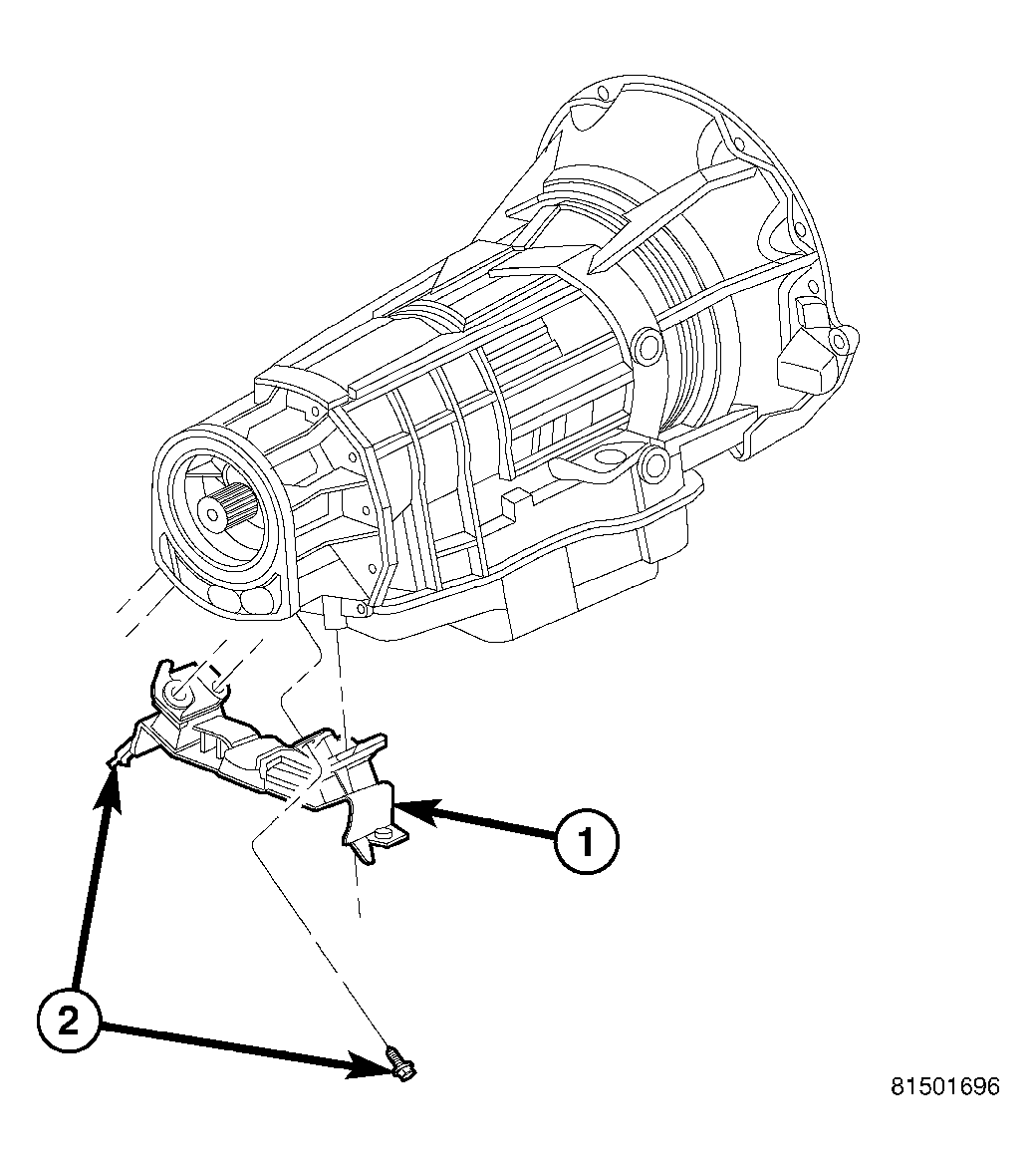

Fig 1: Removing/Installing Engine Rear Mount (4X4)
GC0027234Courtesy of CHRYSLER LLC
  1. Raise the vehicle on a hoist.
  2. Using a suitable jack, support transmission.
  3. Remove the crossmember.
  4. Remove the fasteners (2) from the transmission mount (1) to transmission.
  5. Remove the mount.
