 Courtesy of CHRYSLER CORP.
|

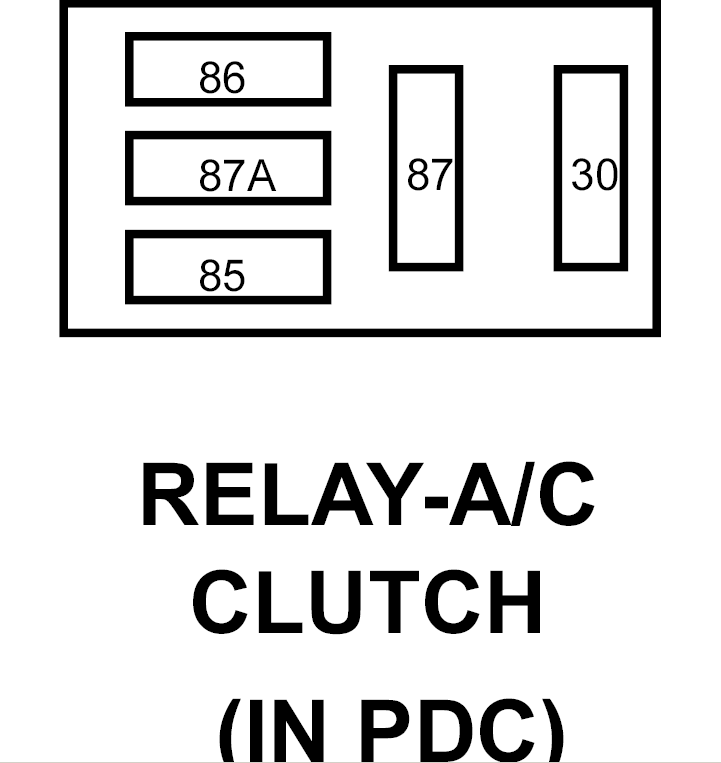

| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A917 18RD/DG |
FUSED B(+) |
| 85 |
C13 20LB/OR |
A/C CLUTCH RELAY CONTROL |
| 86 |
A15 16RD/TN |
FUSED ASD RELAY OUTPUT DIESEL |
| 86 |
F942 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) GAS |
| 87 |
C3 18DB/YL |
A/C CLUTCH RELAY OUTPUT |
| 87A |
- |
- |
