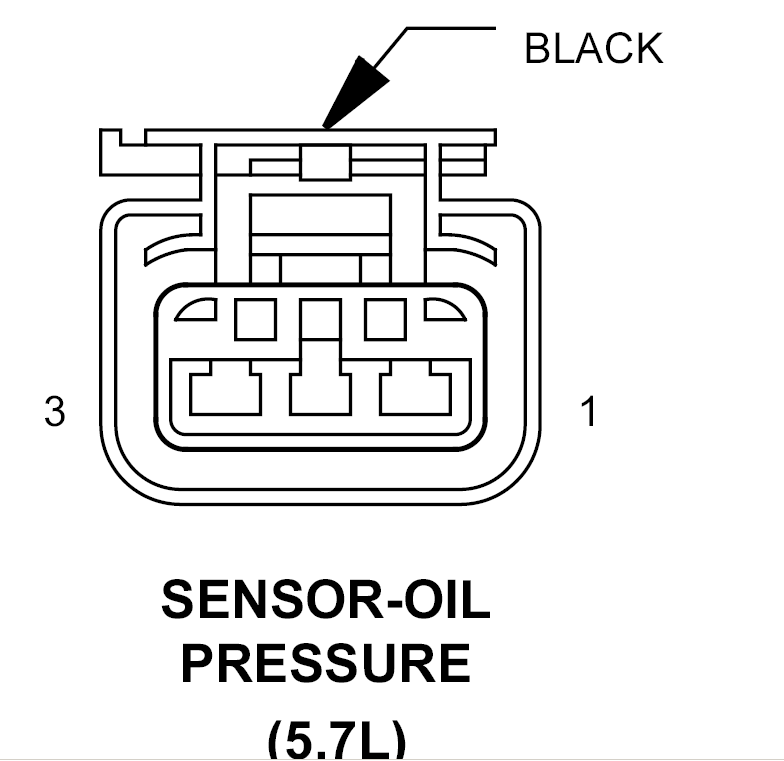

Oil Pressure Sensor (5.7L) Connector End View

SENSOR-OIL PRESSURE - BLACK 3-WAY(5.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	F855 20PK/YL	5 VOLT SUPPLY
2	G6 20VT/GY	ENGINE OIL PRESSURE SIGNAL
3	K900 20DB/DG	SENSOR GROUND
