Center High Mounted Stop Lamp Connector End View

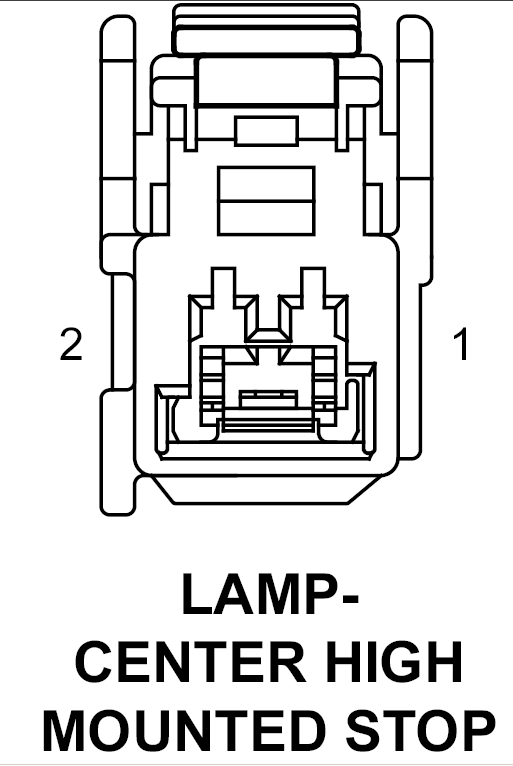

LAMP-CENTER HIGH MOUNTED STOP - 2-WAY

GXK780172Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z800 18BK GROUND
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
