Rear Tow Hook

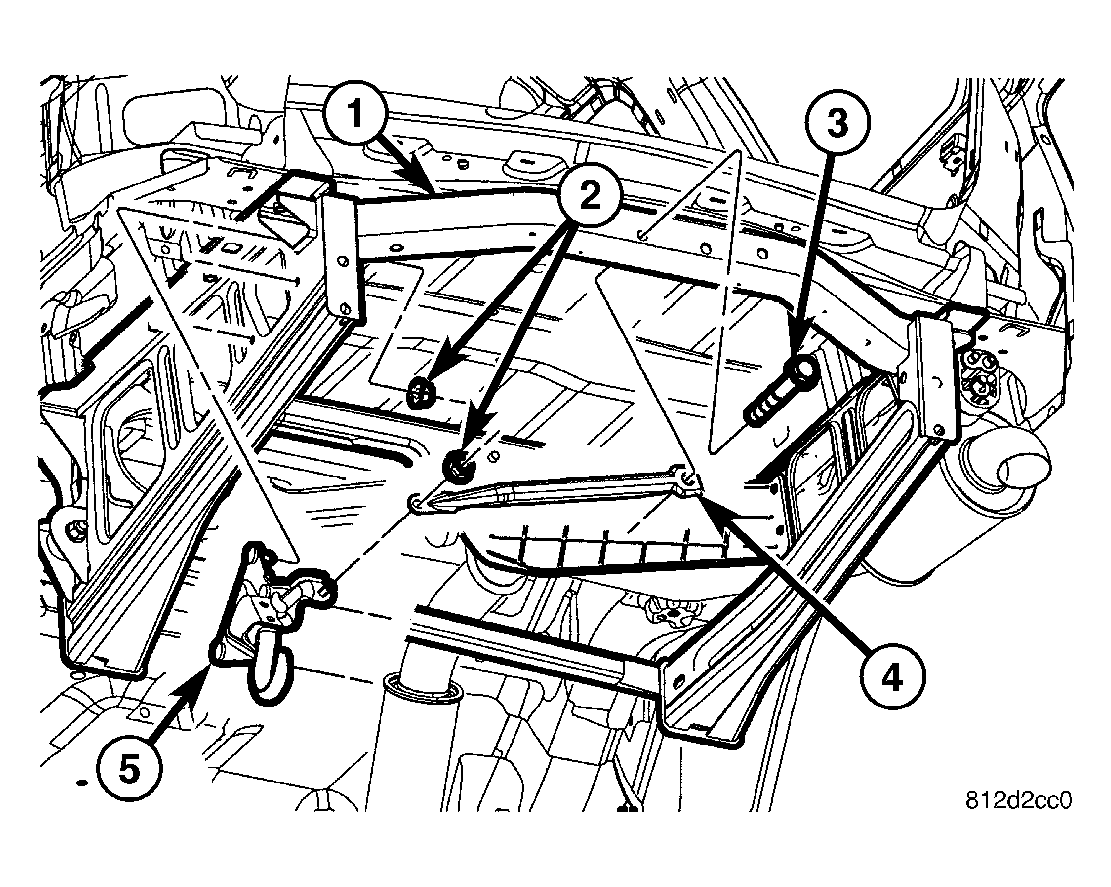

Fig 1: Rear Tow Hook
GC0027819Courtesy of CHRYSLER LLC
  1. Install the tow hook (5) and install the nuts (2).
  2. Tighten the nuts (2) to 88 N.m (65 ft. lbs.).
  3. Tighten the brace bolt (3) to 88 N.m (65 ft. lbs.).
  4. Install the rear fascia. See INSTALLATION .
