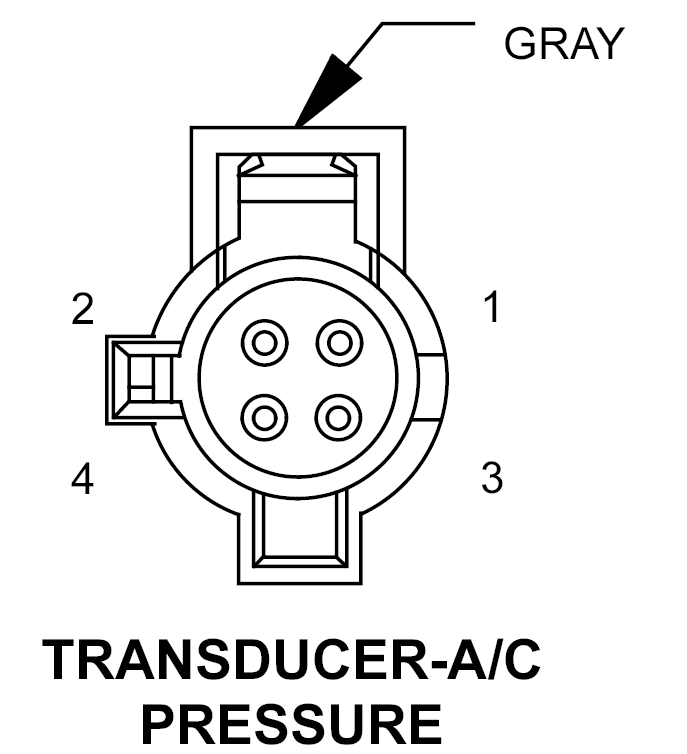

A/C Pressure Transducer Connector End View

TRANSDUCER-A/C PRESSURE - GRAY 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C918 20BK/LB	FCM SENSOR RETURN
2	F891 20PK/GY	5 VOLT SUPPLY
3	C18 20LB/BR	A/C PRESSURE SIGNAL
4	-	-
