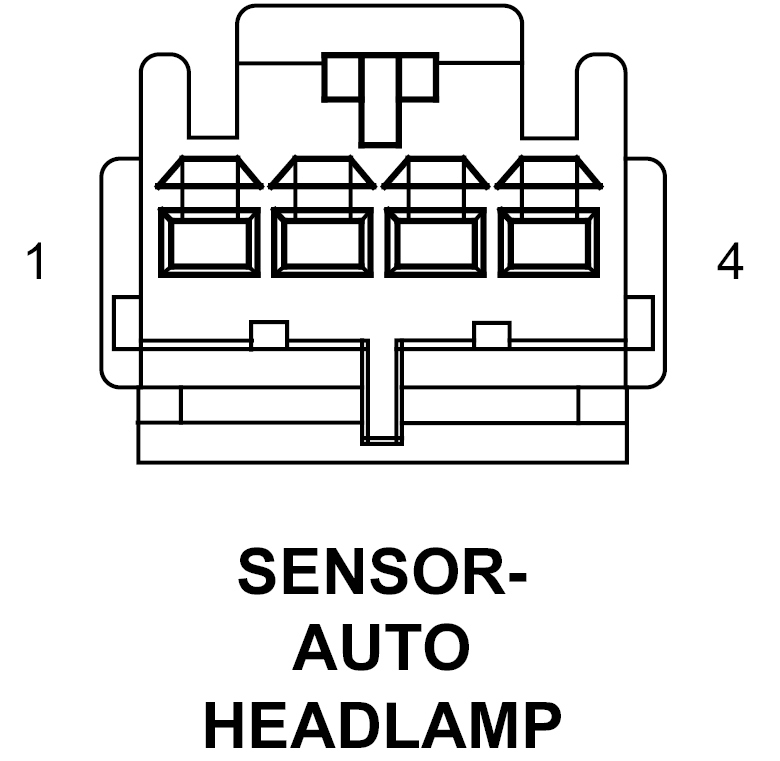

Automatic Headlamp Sensor Connector End View

SENSOR-AUTO HEADLAMP - 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	L924 20WT/TN	AUTO HEADLAMPS SIGNAL RETURN
3	L24 20WT/VT	AUTO HEADLAMPS SIGNAL
4	-	-
