EVAP System Monitor Switch Connector End View

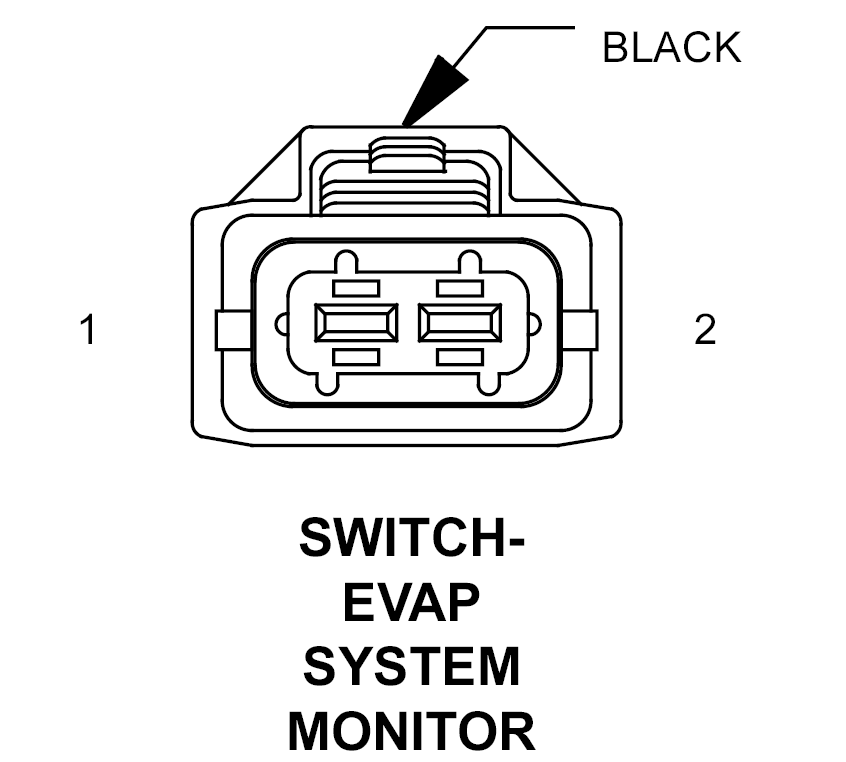

SWITCH-EVAP SYSTEM MONITOR - BLACK 2-WAY

GXK780413Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z912 18BK GROUND
2 K107 20BR/LB ESM SIGNAL
