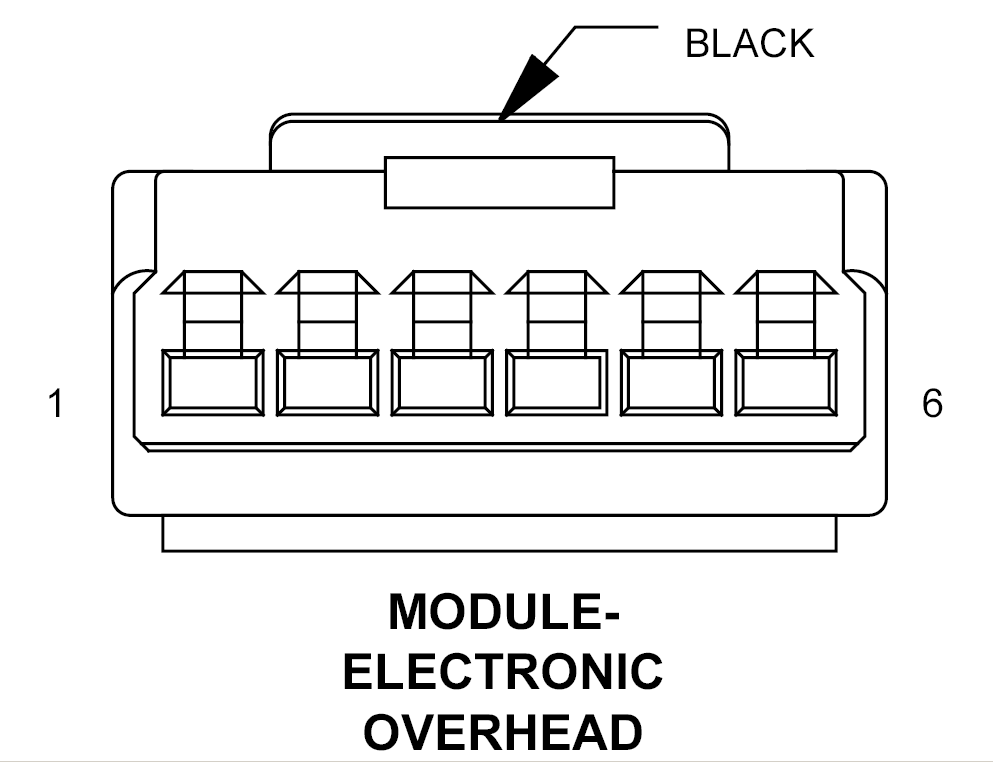

Electronic Overhead Module Connector End View

MODULE-ELECTRONIC OVERHEAD - BLACK 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	Z915 20BK	GROUND
4	A114 20GY/RD	FUSED B(+)
5	D500 20WT	LIN BUS
6	-	-
