Flip Up Glass Switch Connector End View

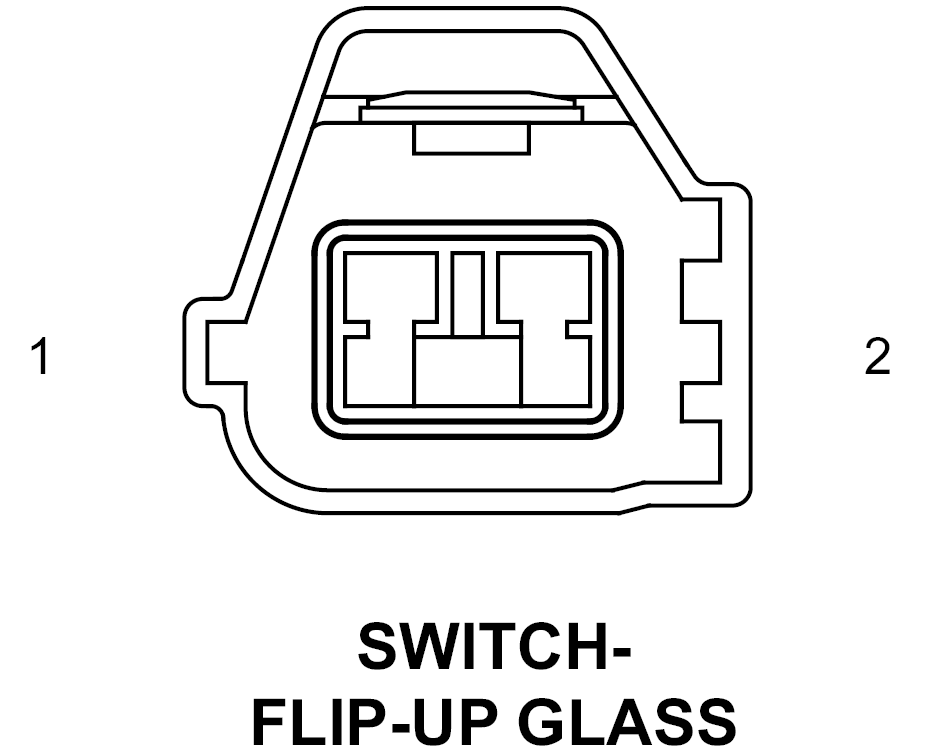

SWITCH-FLIP-UP GLASS - 2-WAY

GXK780459Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 BK GROUND
2 TN/LG FLIP-UP GLASS SWITCH SENSE
