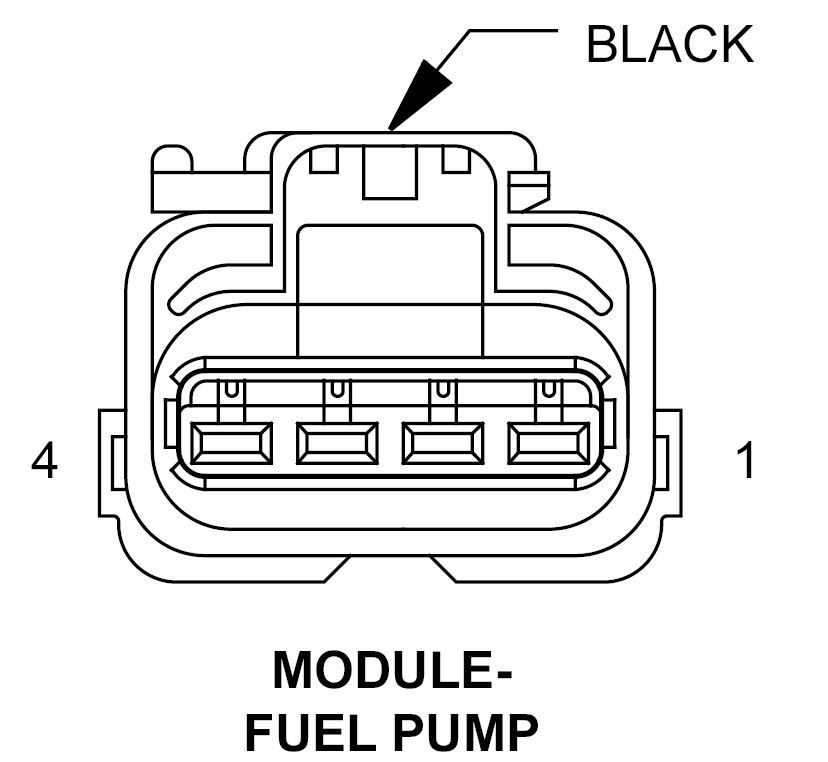

Fuel Pump Module Connector End View

MODULE-FUEL PUMP - BLACK 4-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z912 18BK	GROUND
2	Z210 20BK	GROUND
3	N4 20DB/YL	FUEL LEVEL SENSOR NO. 1 SIGNAL
4	A109 16TN/RD	FUEL PUMP RELAY OUTPUT
