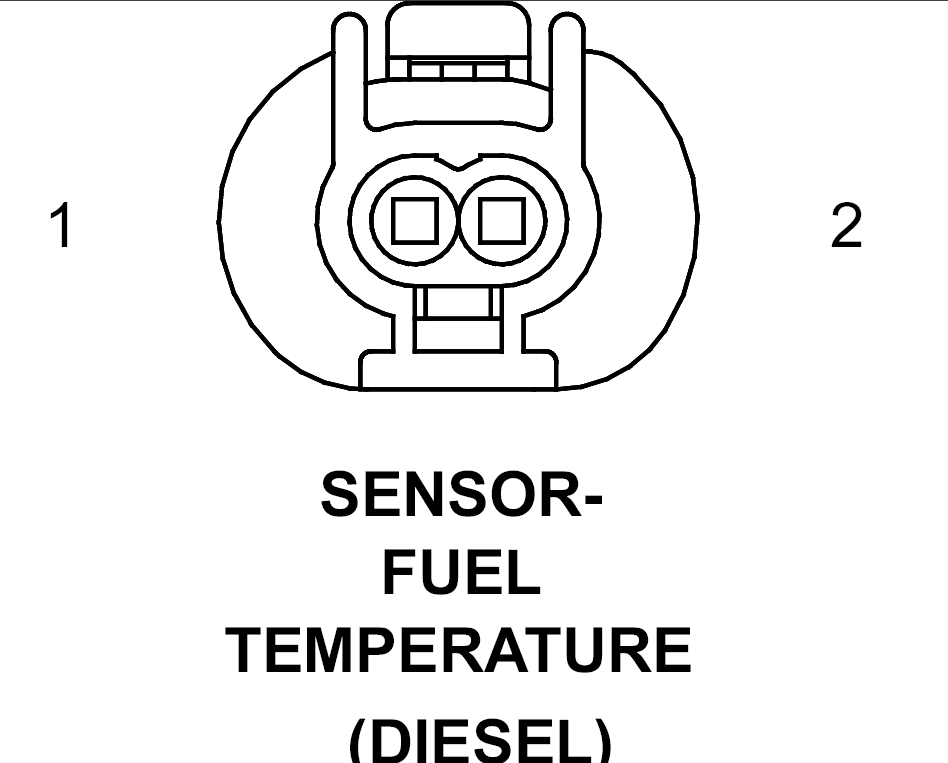

Fuel Temperature Sensor (Diesel) Connector End View

SENSOR-FUEL TEMPERATURE - 2-WAY(DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K914 20BL/DG	FUEL TEMPERATURE SENSOR GROUND
2	K156 20BL/RD	FUEL TEMPERATURE SENSOR SIGNAL
