Generator Connector End View

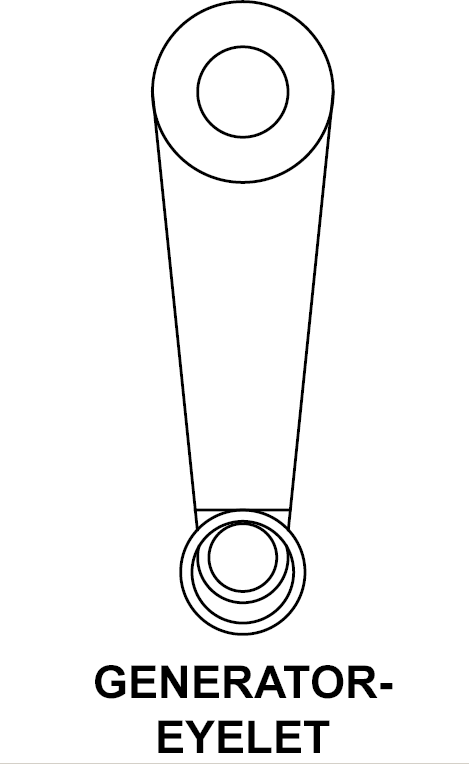

GENERATOR-EYELET - 1-WAY

GXK780134Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A11 6BR/RD FUSED B(+)
