Intake Air Temperature Sensor (Diesel) Connector End View
Intake Air Temperature Sensor (Diesel) Connector End View

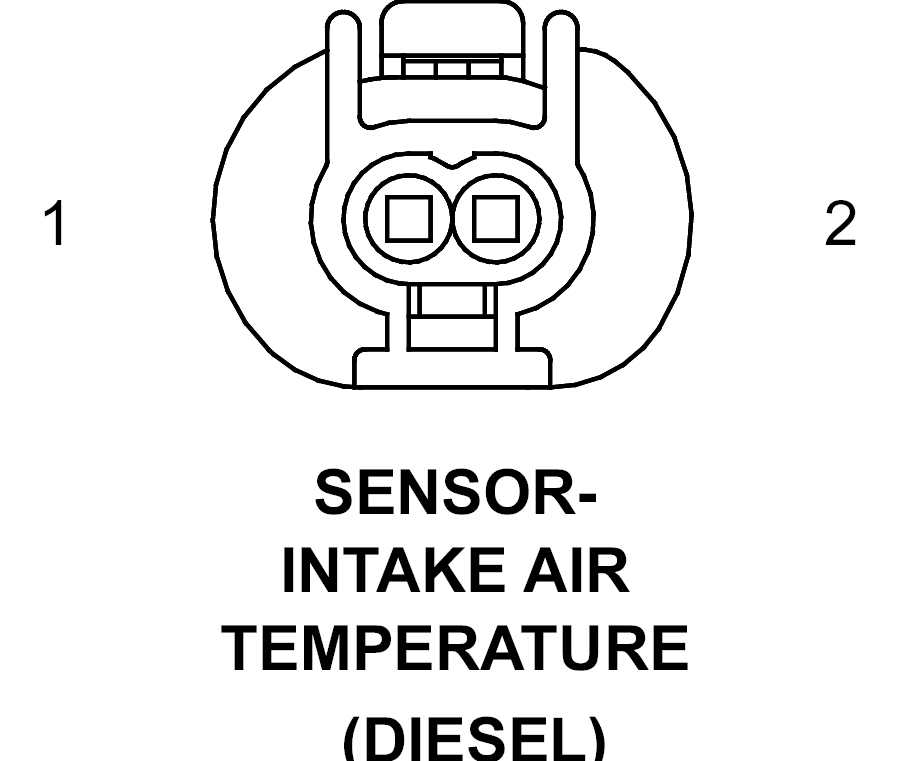

SENSOR-INTAKE AIR TEMPERATURE - 2-WAY(DIESEL)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K960 18BR/VT
IAT GROUND
2
K21 20DG/WT
IAT SIGNAL
Courtesy of CHRYSLER CORP.
