Left Front Fog Lamp Connector End View

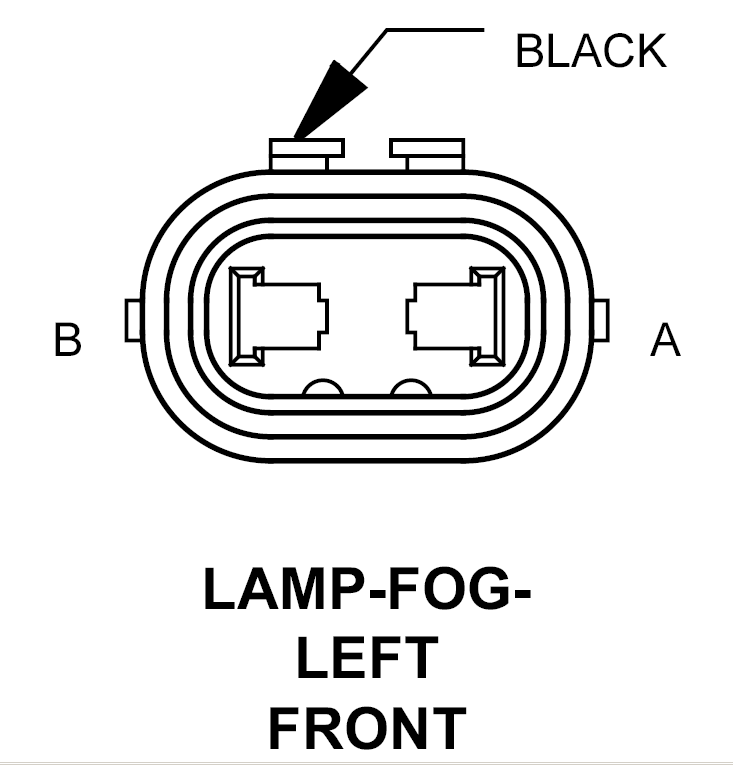

LAMP-FOG-LEFT FRONT - BLACK 2-WAY

GXK780178Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
A L89 18WT/YL FRONT FOG LAMP RELAY OUTPUT
B Z910 18BK GROUND
