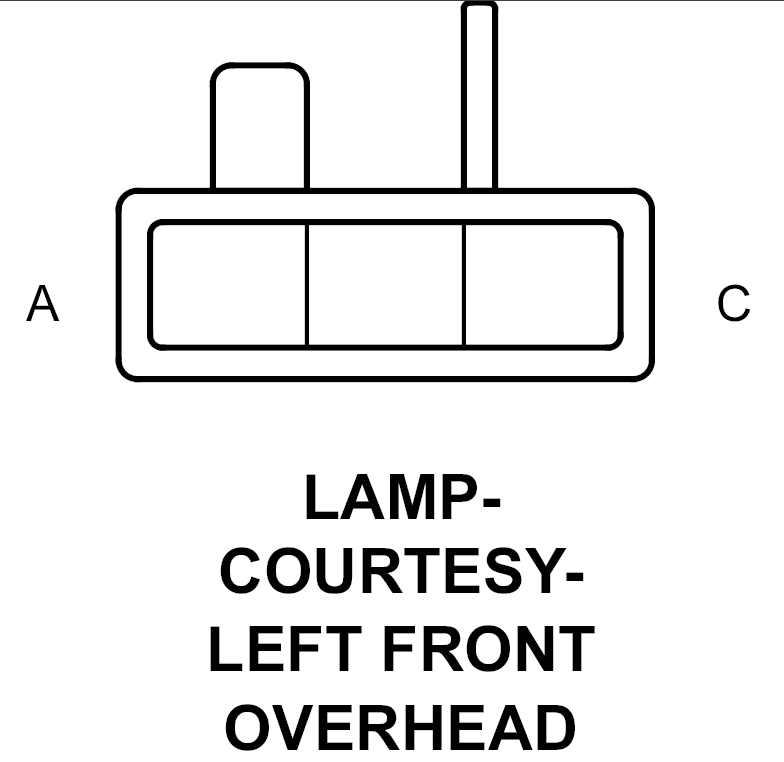

Left Front Overhead Courtesy Lamp Connector End View

LAMP-COURTESY-LEFT FRONT OVERHEAD - 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
A	M22 20YL/OR	COURTESY LAMPS DRIVER
B	A931 20RD	FUSED B(+)
C	M28 20YL/TN	GLOVE BOX/MAP LAMP DRIVER
