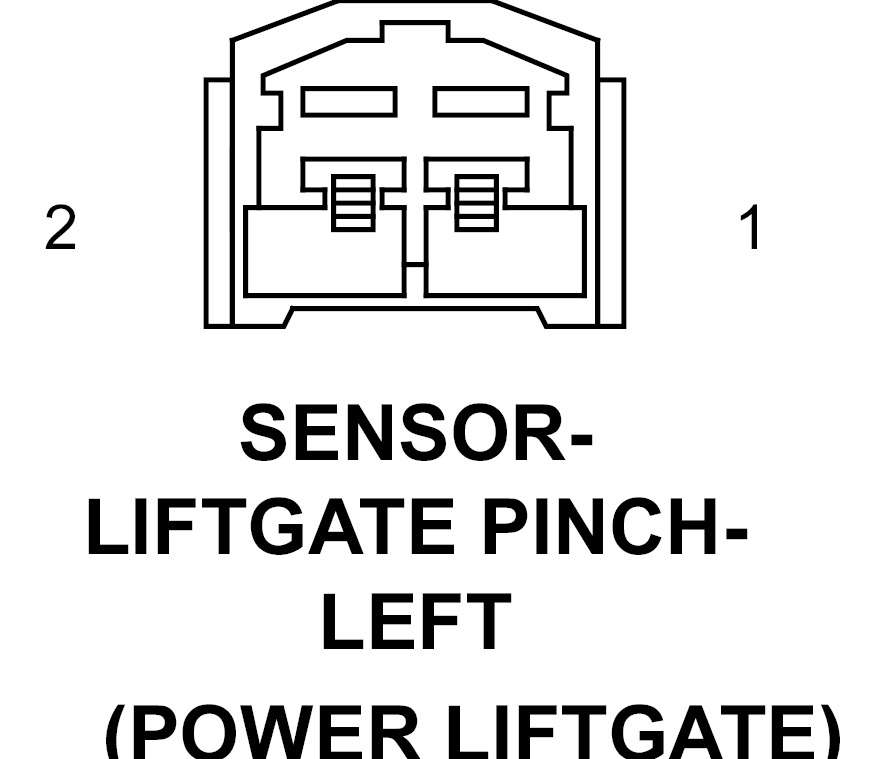

Left Liftgate Pinch Sensor (Power Liftgate) Connector End View

SENSOR-LIFTGATE PINCH-LEFT - 2-WAY(POWER LIFTGATE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q75 20OR/LB	LEFT PINCH SENSOR SIGNAL
2	Q901 20OR/VT	LOGIC GROUND
