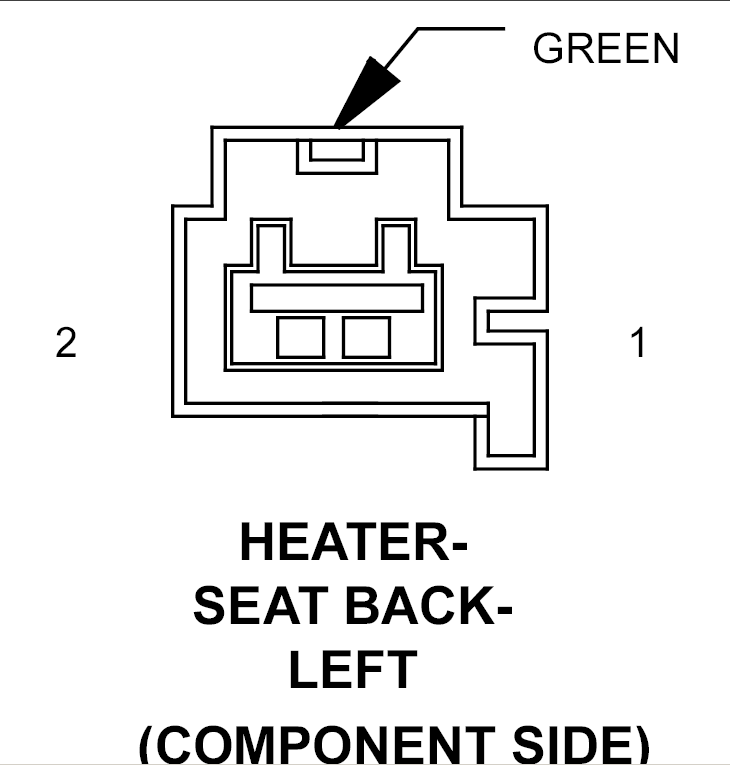

Left Seat Back Component Side Heater Connector End View

HEATER-SEAT BACK-LEFT - GREEN 2-WAY(COMPONENT SIDE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BK	GROUND
2	18LG/RD	LEFT SEAT HEATER B(+) DRIVER
