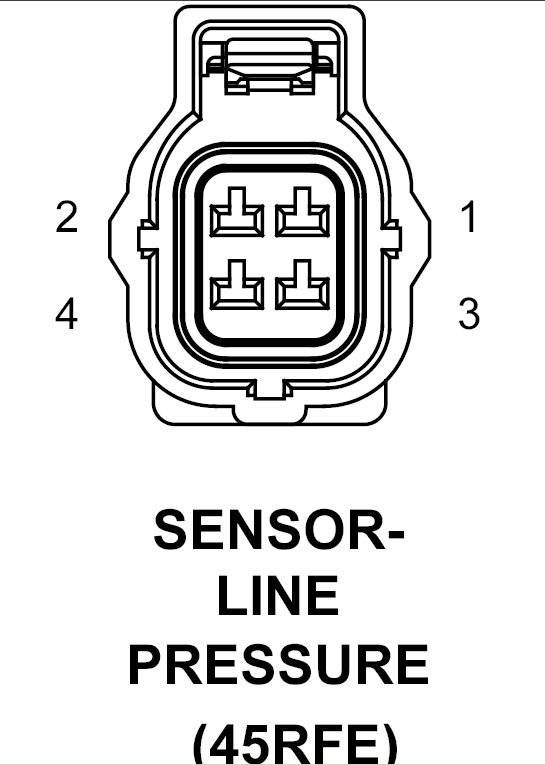

Line Pressure Sensor (45RFE) Connector End View

SENSOR-LINE PRESSURE - 4-WAY(45RFE)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K900 20DB/DG	SENSOR GROUND
2	F856 20YL/PK	5 VOLT SUPPLY
3	T38 20YL/BR	LINE PRESSURE SENSOR SIGNAL
4	-	-
