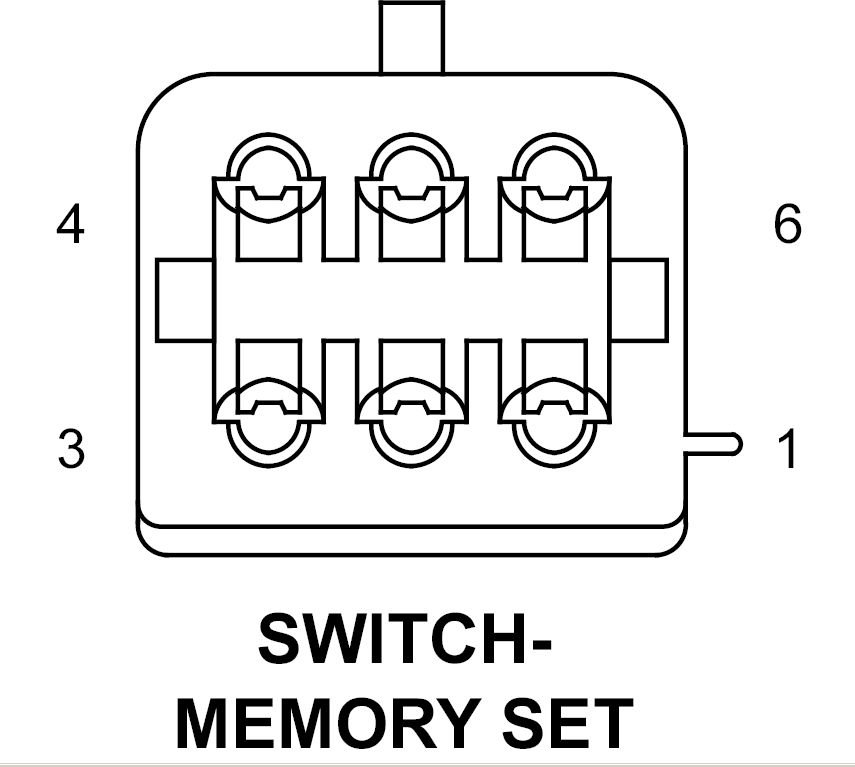

Memory Set Switch Connector End View

SWITCH-MEMORY SET - 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	-	-
4	-	-
5	P439 20LG/OR	MEMORY SELECT SWITCH MUX
6	G920 20VT/YL	MEMORY SELECT SWITCH RETURN
