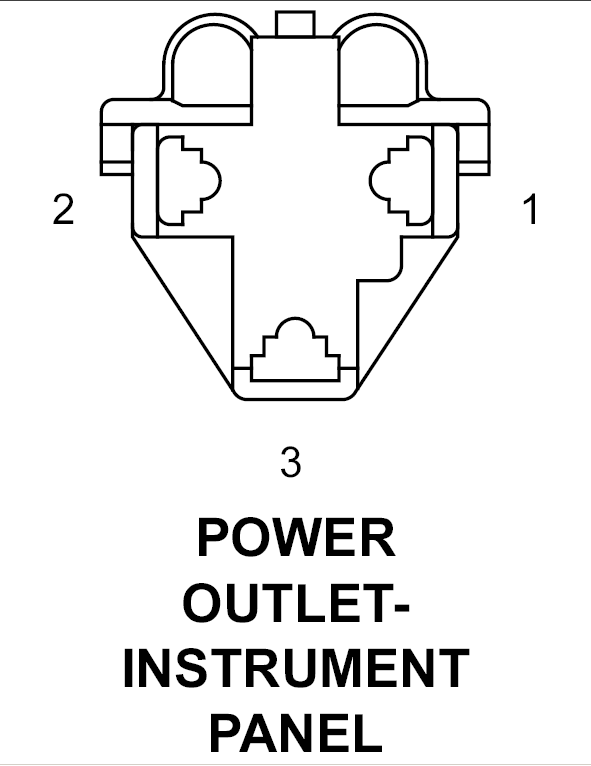

Power Instrument Panel Outlet Connector End View

POWER OUTLET-INSTRUMENT PANEL - 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A207 16RD/LG	FUSED POWER OUTLET RELAY OUTPUT
2	-	-
3	Z905 16BK	GROUND
