Rear Video Camera Connector End View

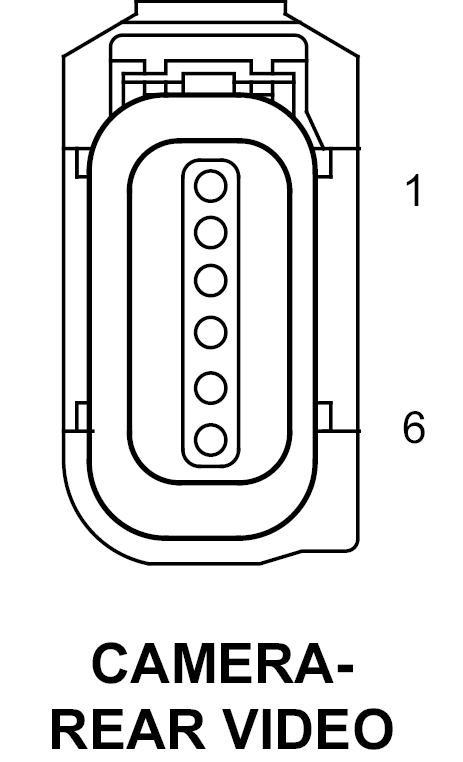

CAMERA-REAR VIDEO - BLACK 6-WAYFEMALE

GXK780457Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 BK CAMERA RETURN
3 RD CAMERA SIGNAL
4 - -
5 LG GROUND
6 TN BACKUP LAMP FEED
