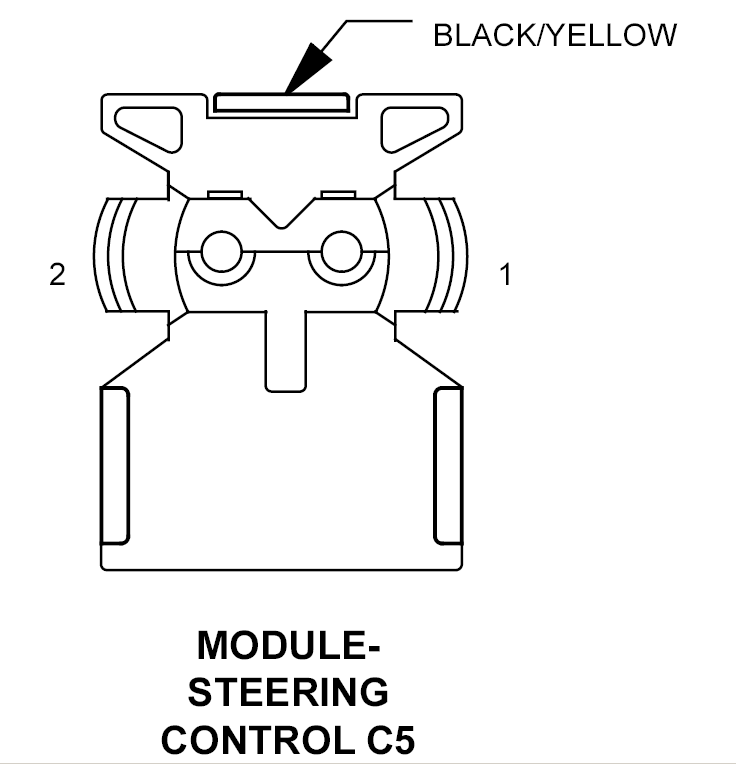

Steering Control Module Connector End View (C5)

MODULE-STEERING CONTROL C5 - BLACK/YELLOW 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	R345 20LG/OR	DRIVER SQUIB 1 LINE 1
2	R343 20LG/BR	DRIVER SQUIB 1 LINE 2
