Windshield Washer Pump Connector End View

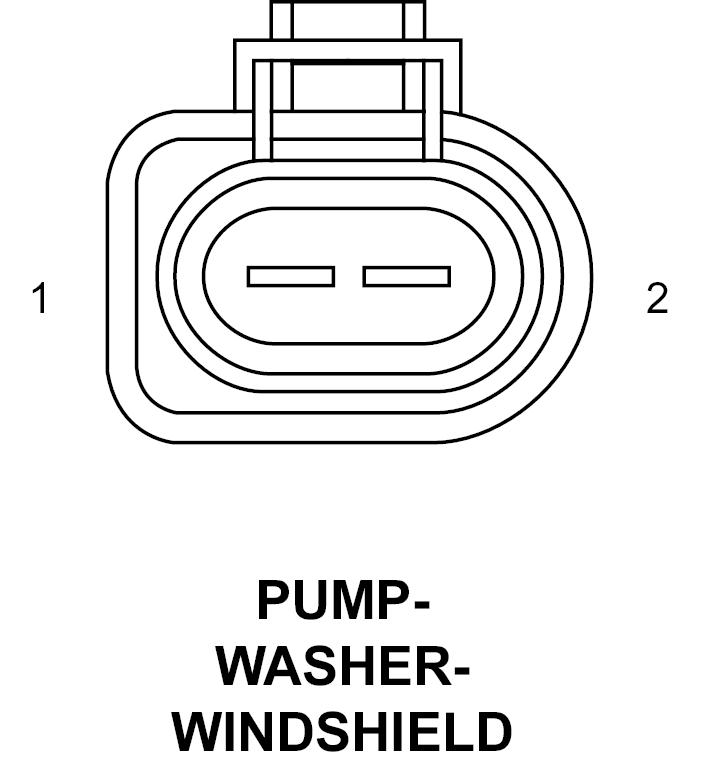

PUMP-WASHER-WINDSHIELD - 2-WAY

GXK780297Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 W20 20BR/YL REAR WASHER PUMP MOTOR CONTROL
2 W10 20BR FRONT WASHER PUMP MOTOR CONTROL
