Commander Overland, RWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
DTCS P0325 To P0501
›
P0461-Fuel Level Sensor 1 Performance
›
Circuit Schematic
Circuit Schematic

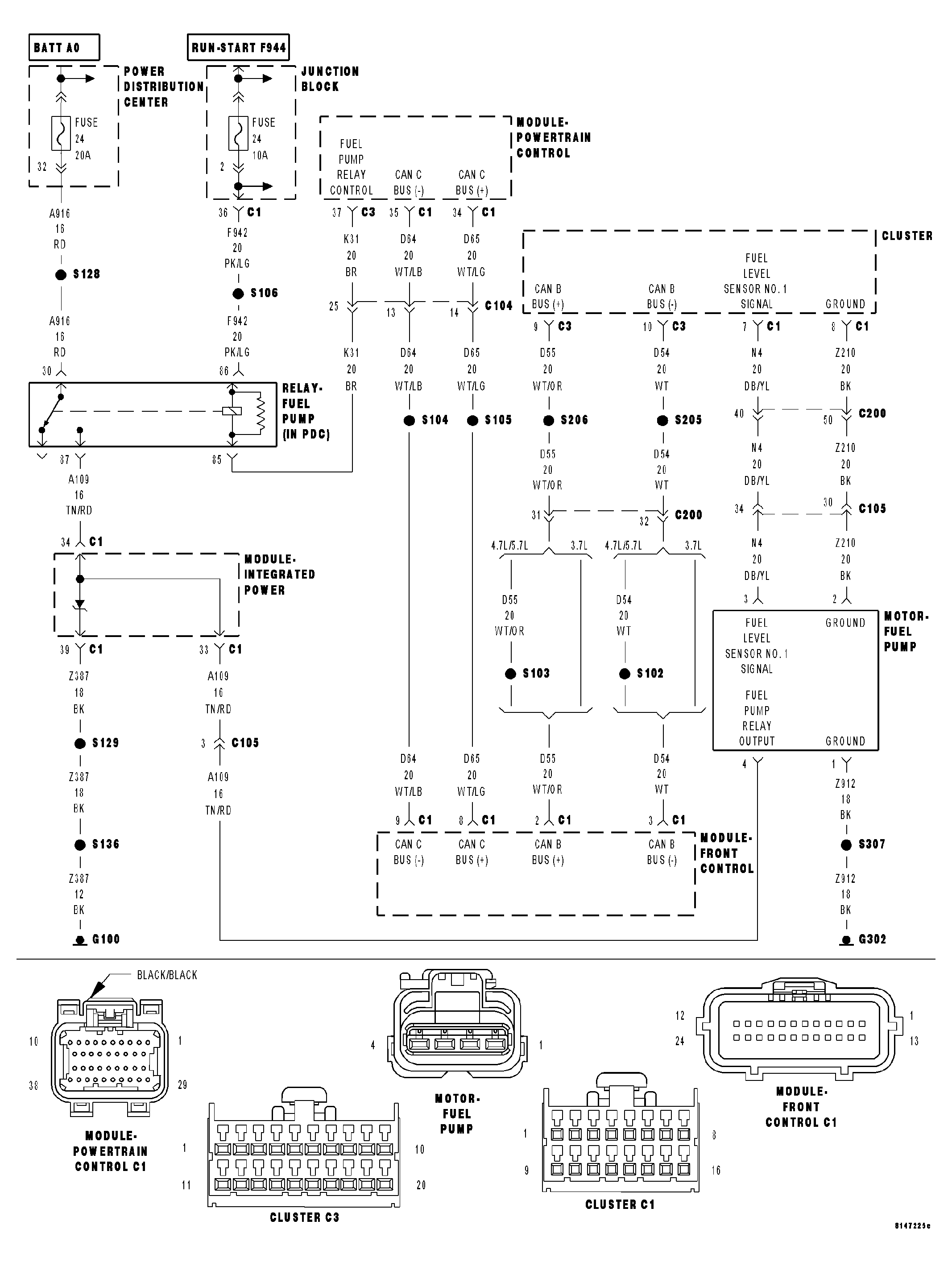

Fig 1: Fuel Pump Delivery System Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
