P0591-Speed Control Switch 2 Performance
›
Circuit Schematic
Circuit Schematic

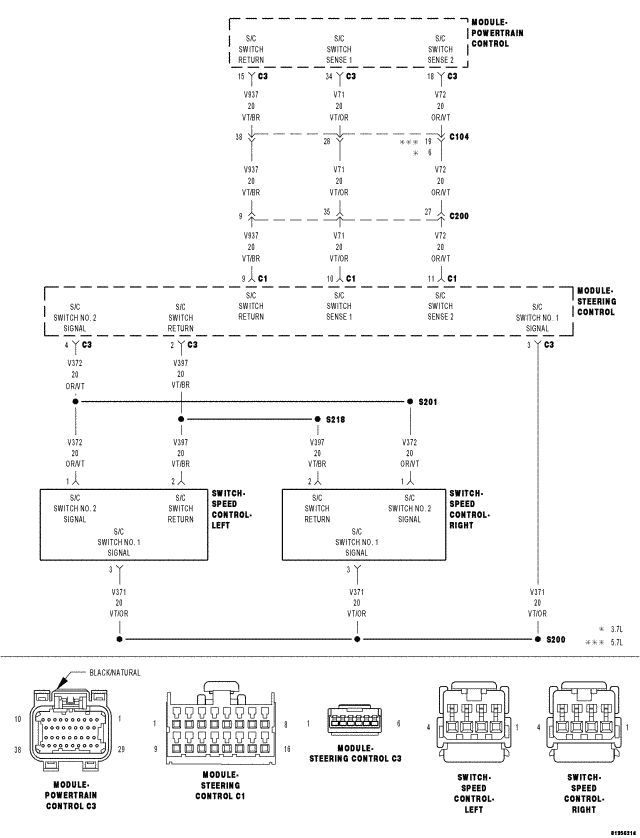

Fig 1: Speed Control Switch Circuit Schematic
Courtesy of CHRYSLER LLC
