Circuit Schematic

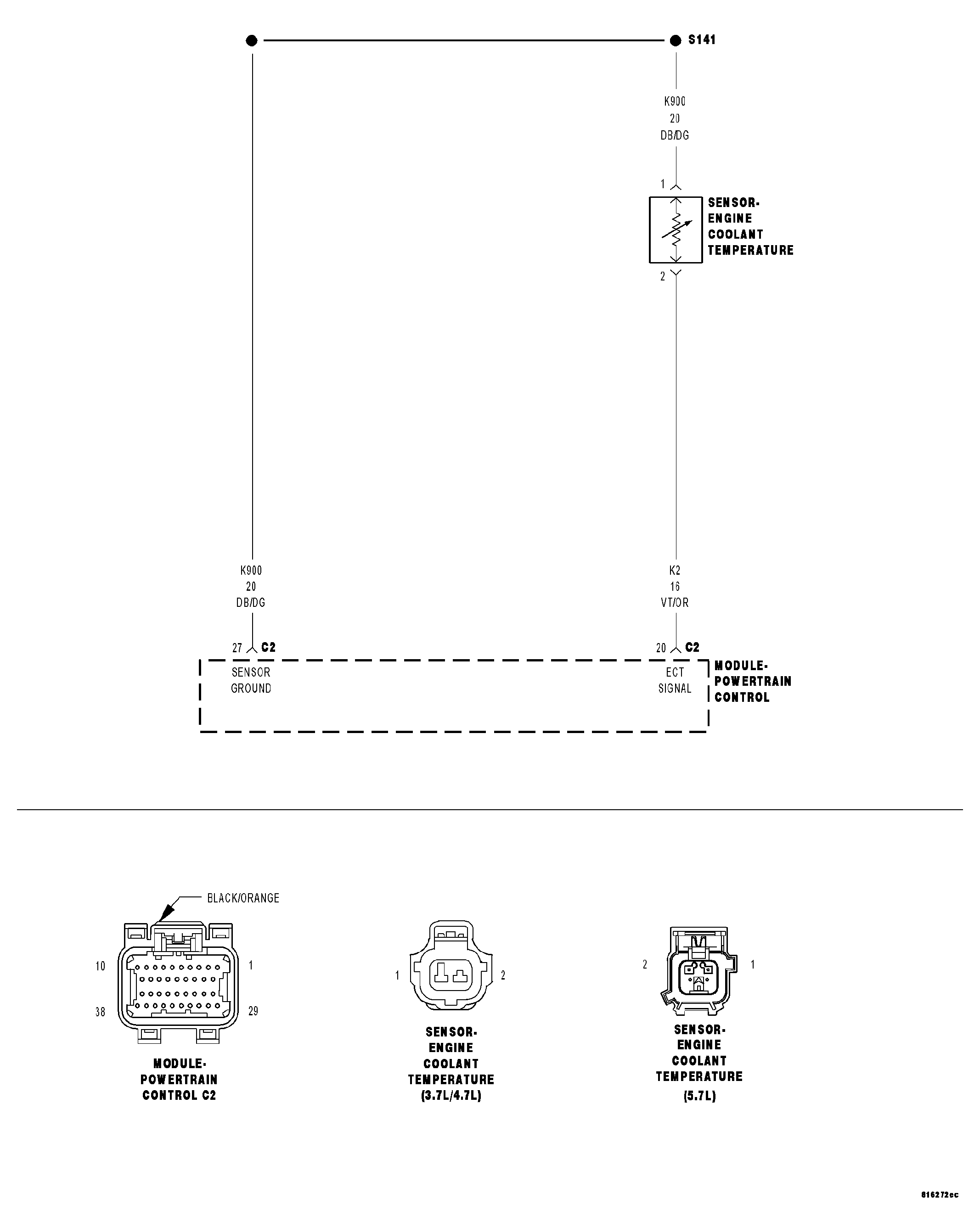

Fig 1: Engine Coolant Temperature Sensor Circuit Schematic
GC0044749Courtesy of CHRYSLER LLC
