Circuit Schematic

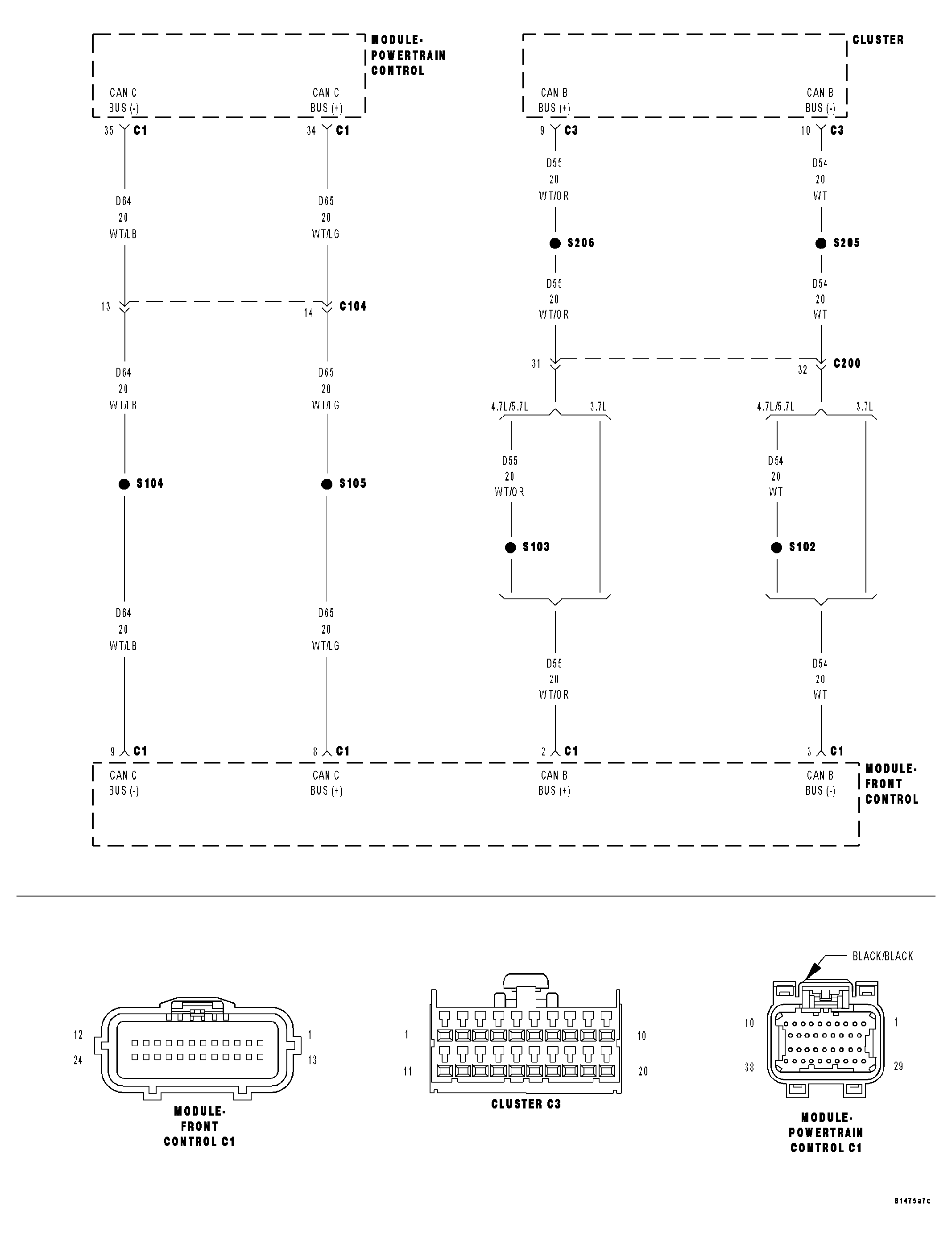

Fig 1: Cluster Communication CAN B BUS Circuit Schematic
GC0027227Courtesy of CHRYSLER LLC
